10TP 1:25 WAK


A great kit from WAK

The kit

Publisher WAK

Another great model from WAK.The model stand out as a very good kit. The partsfit is 100% and coloring is great.This is a model that suits all kinds of modeler.It's easy to assemble with few hard parts. I could recommend this also as a starter kit for the novice or as a great model for the more experienced builder.

There are of course extras for this model. Both laserframes , wheels and lasertracks

Designer M.Szklarczyk, D.Furczak
Scale 1:25
Size N/A
Parts 1196
Pages 14
Format A4
GMI 3-Medium

Pages of written instructions in Polish 1
Pages with parts 8
Number of drawings 44 3D drawings

Pictures of some of the parts and instructions
A lot of laserparts can be bought for this model.

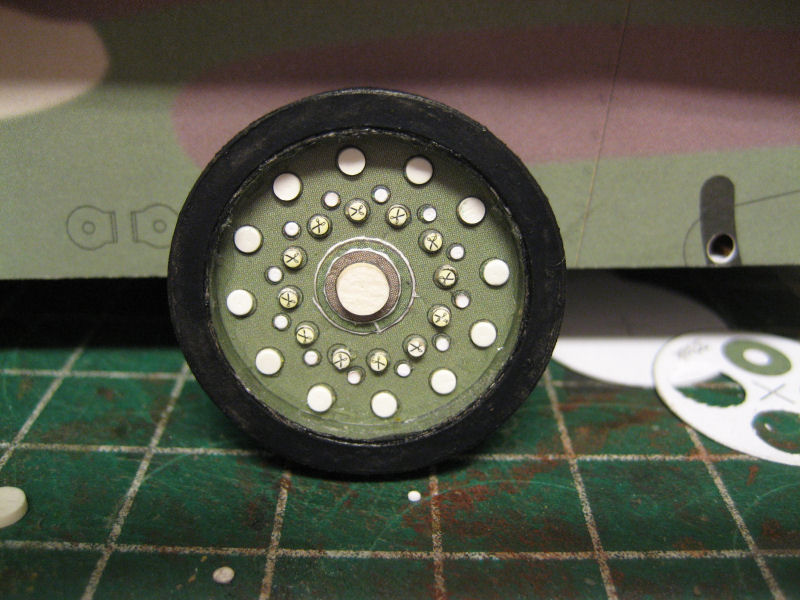

Pictures from my ongoing build.

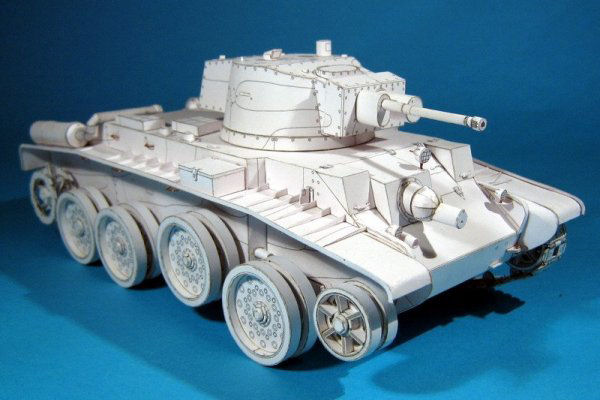

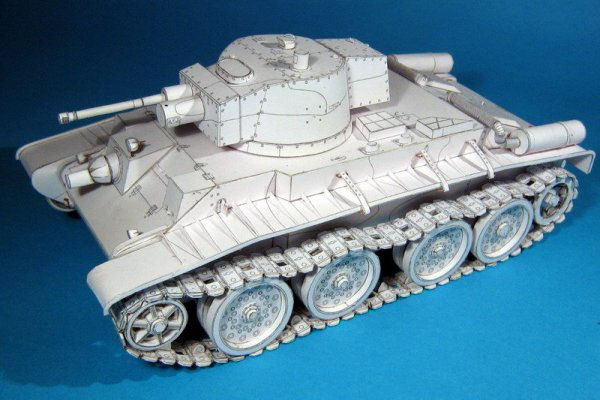

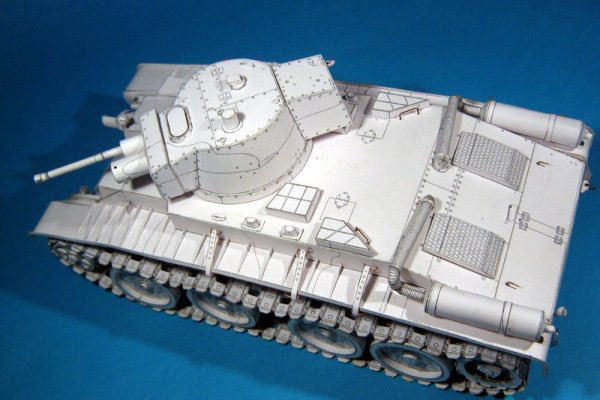

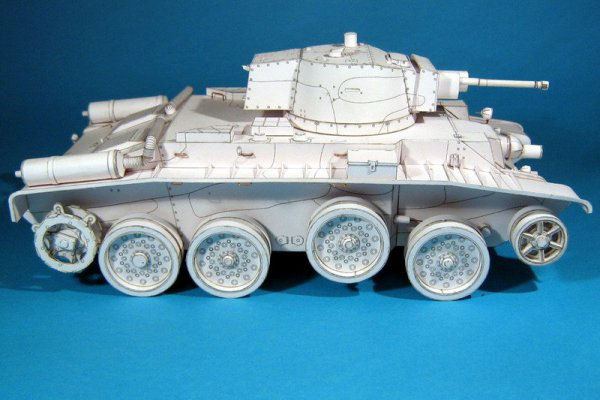

Pictures of a finished "betabuild" taken from WAK's site.

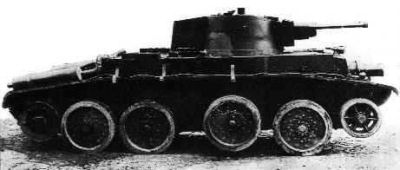

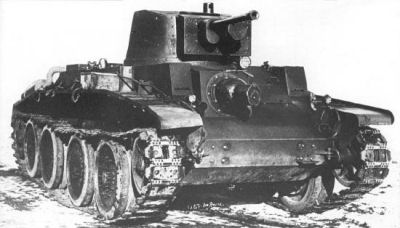

History and information

The 10TP was a Polish light cruiser tank that never left the prototype status. While advancing the Polish armour development programme, the prototype was deemed not successful. Discoveries made during testing that led to the design phase of the newer 14TP model, which was, however, never completed, because World War II started. The 10TP prototype itself was of an original design implementing some general ideas suggested by John Walter Christie but also many new technical solutions.

At the end of the 1920s, the Polish Armed Forces felt that they needed a new tank model. The Military Institute of Engineering Research (Wojskowy Instytut Badan' Inz.ynierii , WIBI) sent Captain Rucin'ski to the United States to legally acquire a Christie M1928 tank, its blueprint and license. The tank was to be used as a base for a new Polish light tank. The Poles however never received the machine and Christie fearing legal charges, refunded the purchase.

Due to this failure to purchase the master model and the possible license, at the end of 1930 the WIBI Tank Design Bureau began preliminary design work on their own wheeled/tracked tank, based on the Christie M1928 and Christie M1931 models, known under the working name "A la Christie".

The work was based on available data and advertising leaflets as well as notes and sketches that Captain Rucin'ski obtained from Christie. In 1932 the design drawings and a list of details were ready but soon the work slowed down because the designers were put in charge of a just-bought British Vickers Mark E tank that led to the 7TP light tank which was developed soon after.

At the end of 1934, because of the liquidation of WIBI and establishing of the Design and Testing Centre of the Armoured Forces reporting directly to the Armoured Forces Command, most of the "A la Christie" project documentation was destroyed under the supervision of a special commission. Only a few hand-written notes and calculations were left.

On 10 March 1935 design work on a new model called 10TP was started. Major Rudolf Gundlach headed the design team consisting of, among the others, engineers Jan ?apuszewski, Stefan O?dakowski, Mieczys?aw Staszewski, Kazimierz Hejnowicz and a process engineer Jerzy Napiórkowski.

Despite the fact that in 1936 the vehicle design was not completely finished, it was included in the programme of Armoured Forces that was a part of a general projection of growth and upgrade for the Polish Army for 1936-1942. This programme was approved by the Armament and Equipment Committee (Komitet do spraw Uzbrojenia i Sprze;tu, KSUS) in January 1936. The 10TP tank was specified on the list of the equipment scheduled for four tank battalions in the new motorised units.

Assembly of the first tank prototype was commenced in 1937 in the Experimental Workshop (WD) located within the area of the State Engineering Plants (PZInz..) Factory in Ursus near Warsaw, where all Polish tanks were produced in the period of 1931-1939. The work was supervised by Captain Kazimierz Grüner. At the same time two motorised cavalry brigades were formed with the intention that they would be equipped with the tank.[2]

Building of the tank was completed in July 1938. It took so much time because some basic assemblies that were not produced in Poland had to be acquired abroad like an engine of a sufficient output. It was not before 16 August that the 10TP tank rolled out for a first longer ride. It was driven by an experienced military specialist Sergeant Polinarek under personal supervision of the Chief of the Trial and Experiment Department in the Bureau of Technical Studies on Armored Weapons (Biuro Badan' Technicznych Broni Pancernych, BBT Br.Panc.) Captain Leon Czekalski. The trials were kept secret because the activities of the German Abwehr and the members of the "Fifth Column" were then getting more and more intensive in Poland.[3]

Successive trials being stopped by minor faults lasted until the 30 September and then the tank was sent to the WD where design modifications were made. On 16 January 1939 the tank was tested, under supervision of its Chief Designer along a short distance trip to ?owicz and in the spring, between 22 and 25 April it went beyond Grodno, traveling along a total distance of 610 km. After this trip, when a total of nearly 2000 km were logged, the vehicle was sent again to the WD where it was nearly completely stripped down to check the wear on particular parts and assemblies, identify causes of malfunctions and to repair the damage. In May, the refurbished tank was demonstrated to generals and other top ranking military authorities.

The designers, having analysed their experiences came to the conclusion that a tank of this type should be a purely tracked vehicle and any equipment needed for driving it on wheels was just an unnecessary weight. Getting rid of this weight allowed them to increase the armour thickness significantly while vehicle weight remained unchanged. Thus another development step of the 10TP was to be the 14TP tank. Its construction was started in the end of 1938 but it was not completed due to the war.[4][5]

Before the tank could enter mass production, German invasion of Poland in September 1939 ended the independent existence of the Second Polish Republic.


Specifications

Weight 12800kg
Length 5.4m
Width 2.55 meters
Height 2.2 meters
Crew 4
Armor Hull: front, sides, back: 20mm, bottom and top: 8 mm Turret: front and sides: 16mm
Primary armament 1x37 mm Bofors wz. 36
Secondary armament 2x7.92 mm wz. 30
Engine 12 cylinder American La France engine 210(actual)/240(stated) HP
Power/weight N/A
Suspension Christie
Operational range On-road range:210 km Off-road range:130 km
Speed 50-75km/h




Photos and info from Wikipedia
