Messerscmitt ME-109 G2 1:33 ORLIK

Messerscmitt ME-109 G2 cover



The kit

Publisher Orlik This kit from Orlik is a very nice kit.All parts fits very well.The print is very good.There is no weathering on this kit. The colors are crisp and clear.The instructions are available both in Polish and English.The drawings are of the 2d and 3d type.Laserparts are also available for this model.Frames and wheels.

You can get this model from www.orlik.konradus.com

Designer Lukasz Fuczek
Scale 1:33
Size 210 x 297 mm
Parts 266
Pages 10
Format 245 x 345 mm
GMI 3-easy/medium

Pages of written instructions in Polish 1
Pages with parts 4
Pages with drawings 3

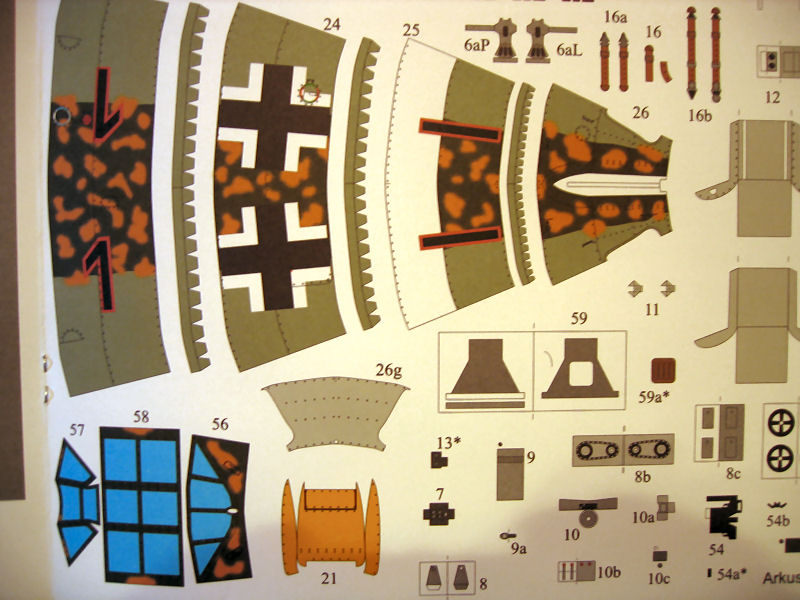

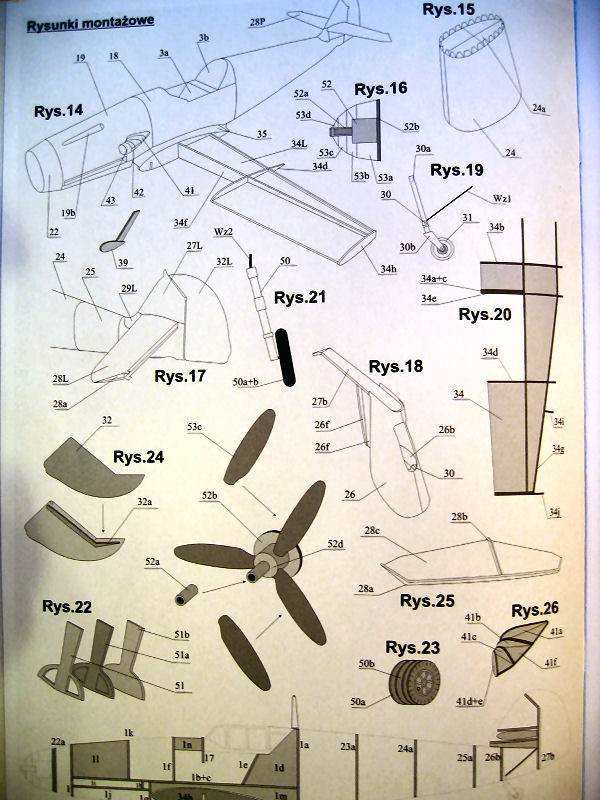

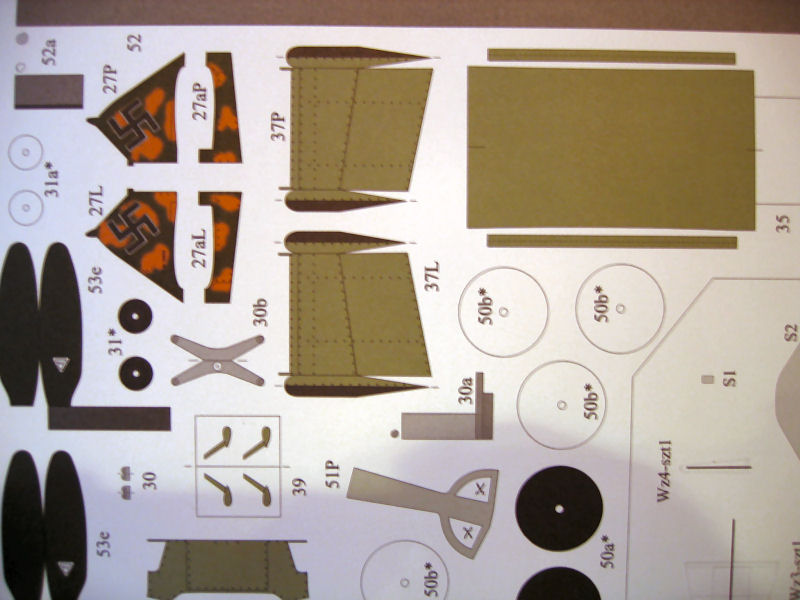

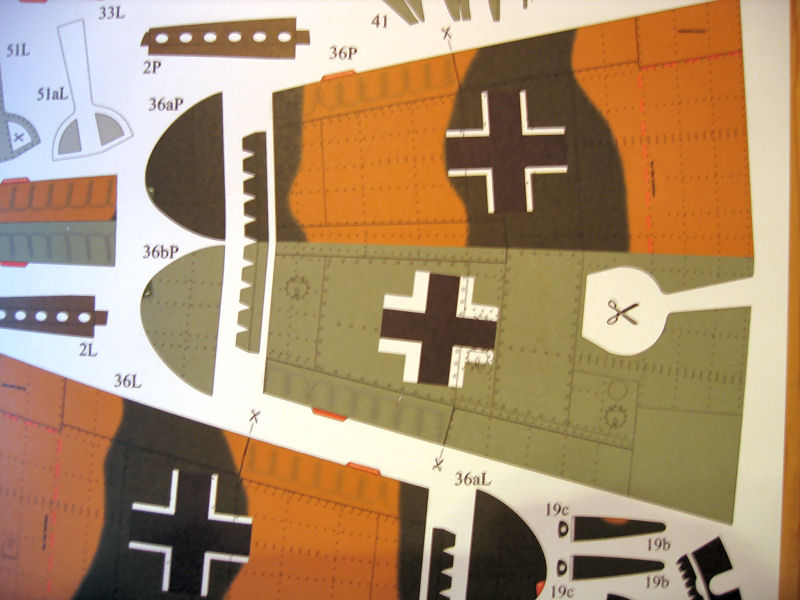

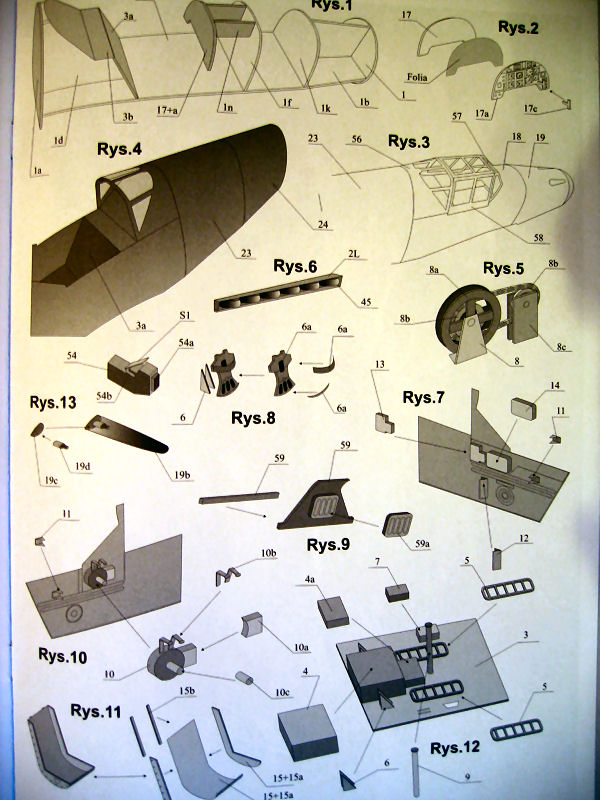

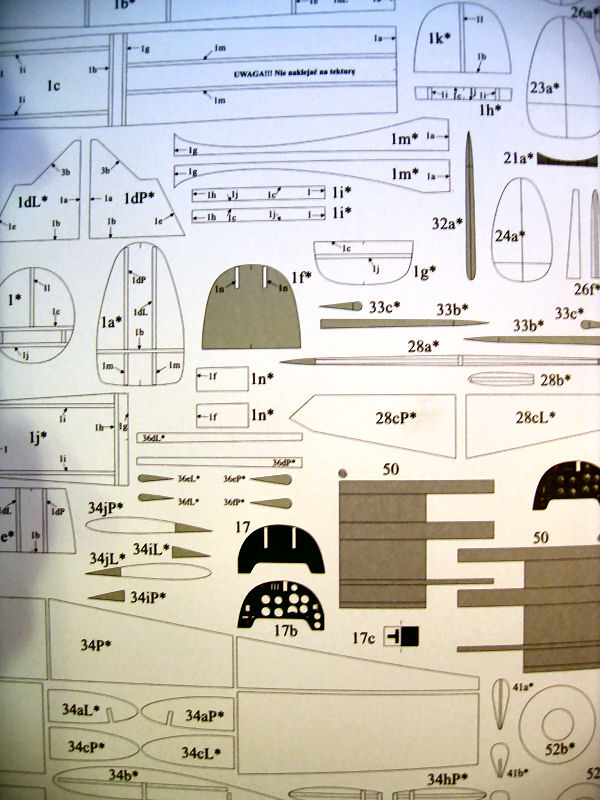

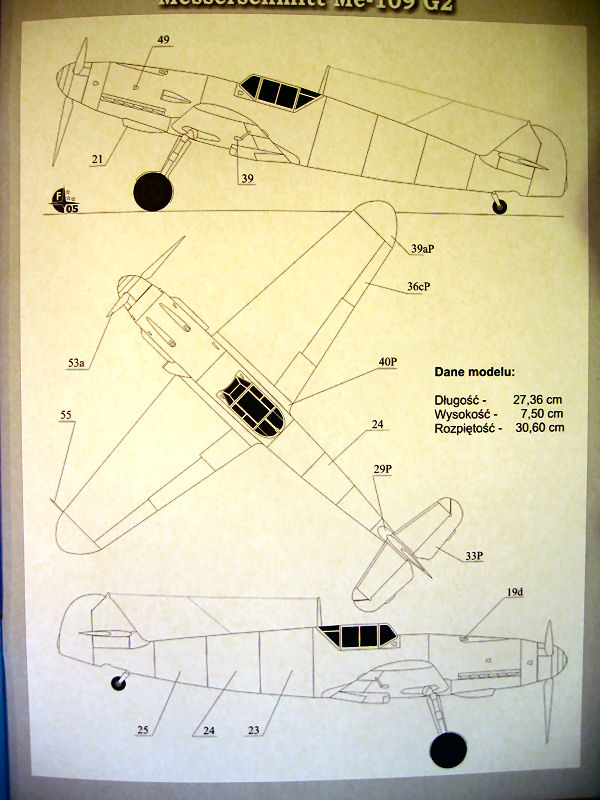

Pictures of some of the parts and instructions

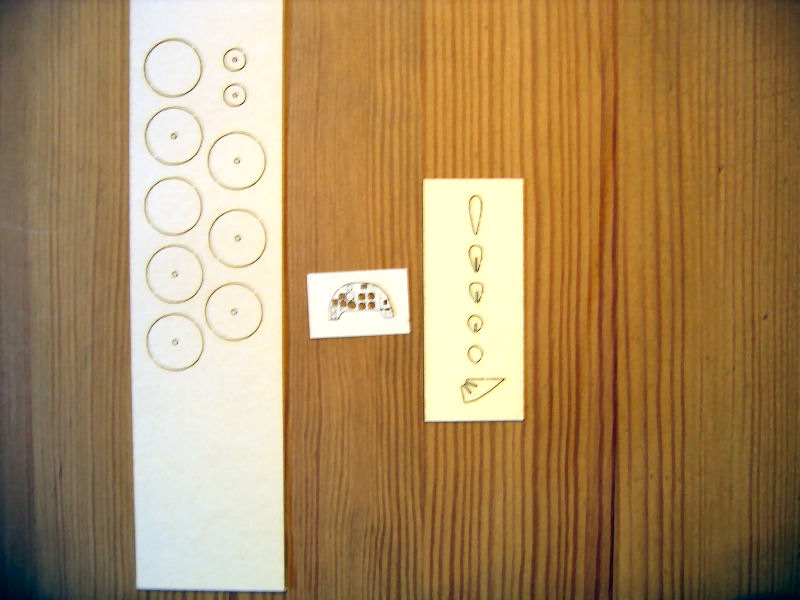

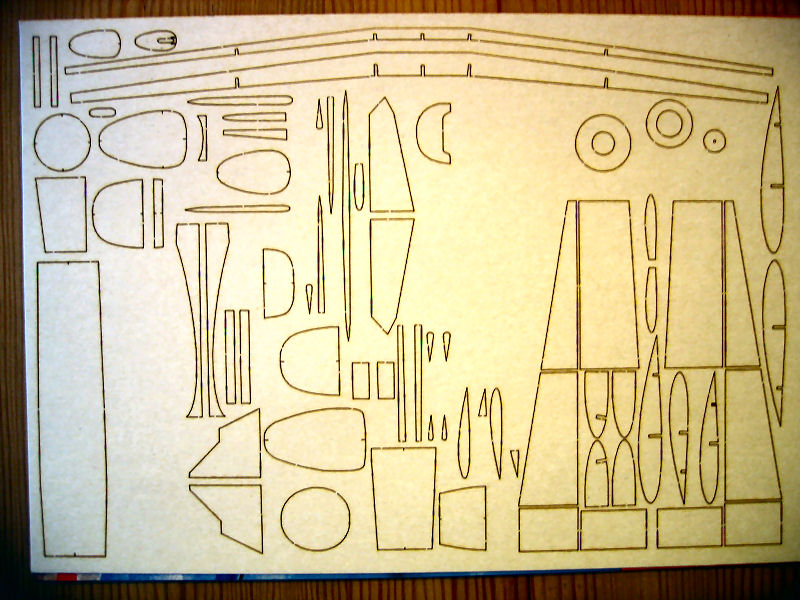

Laserparts

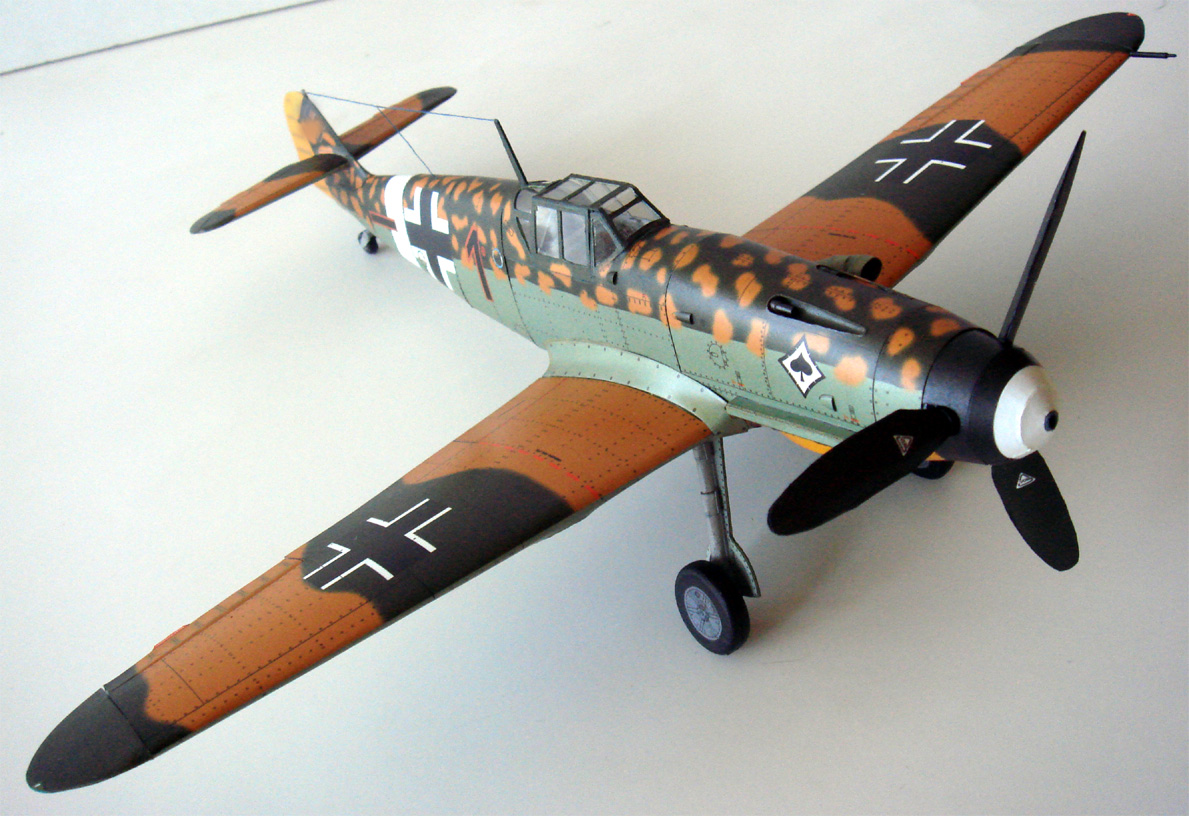

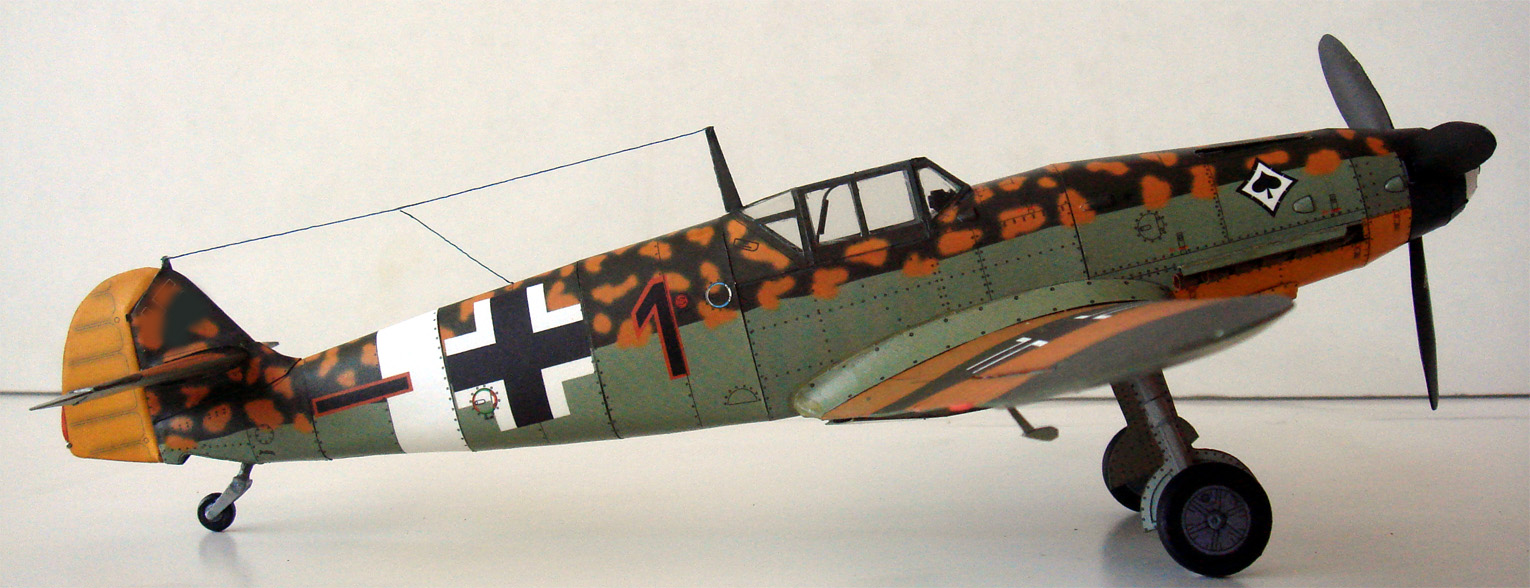

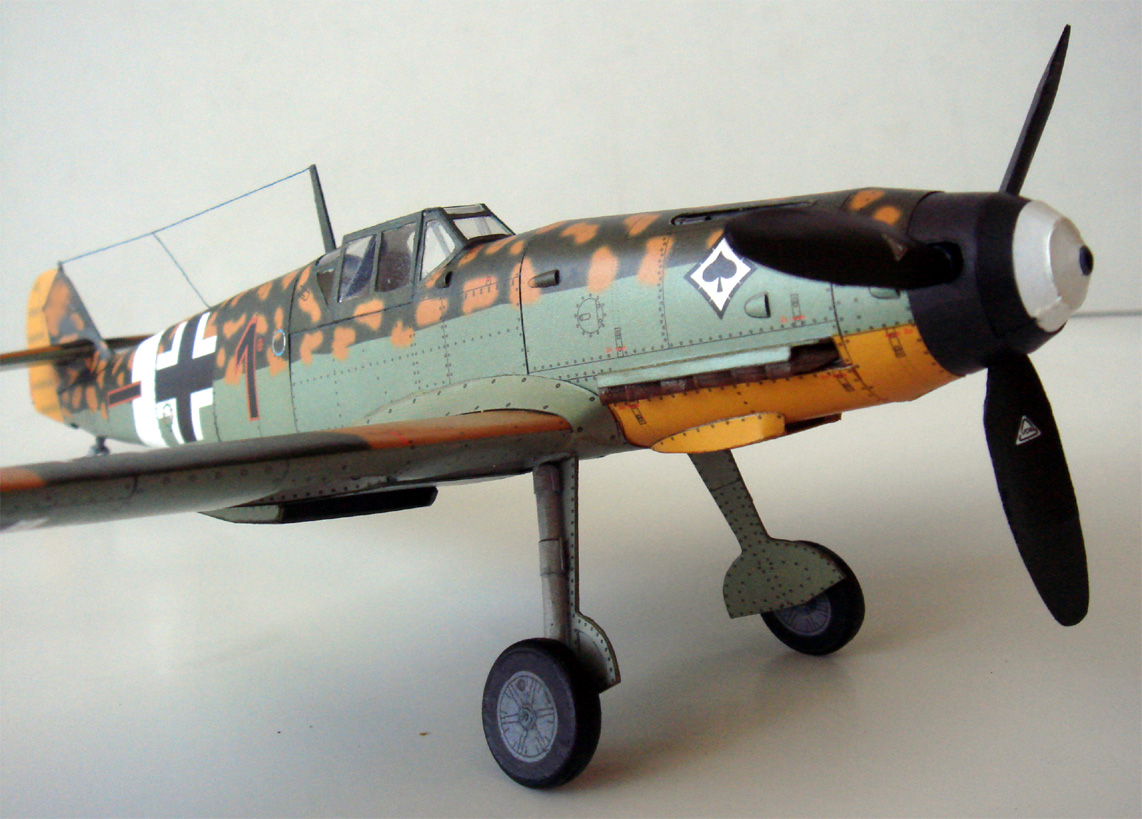

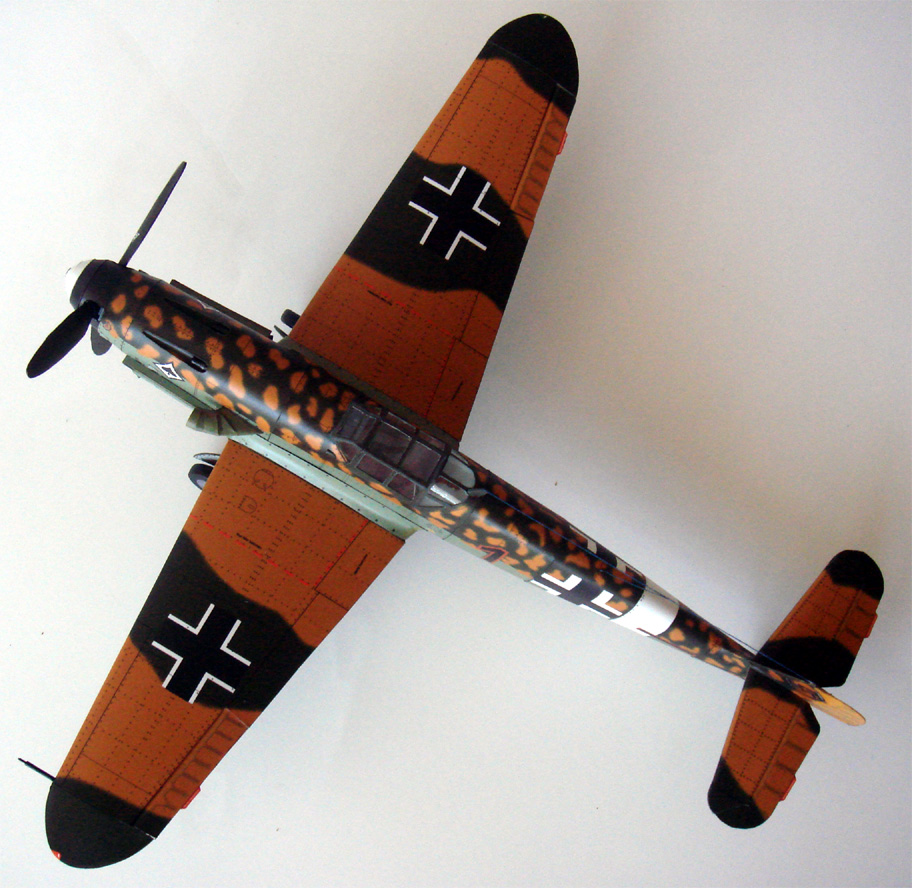

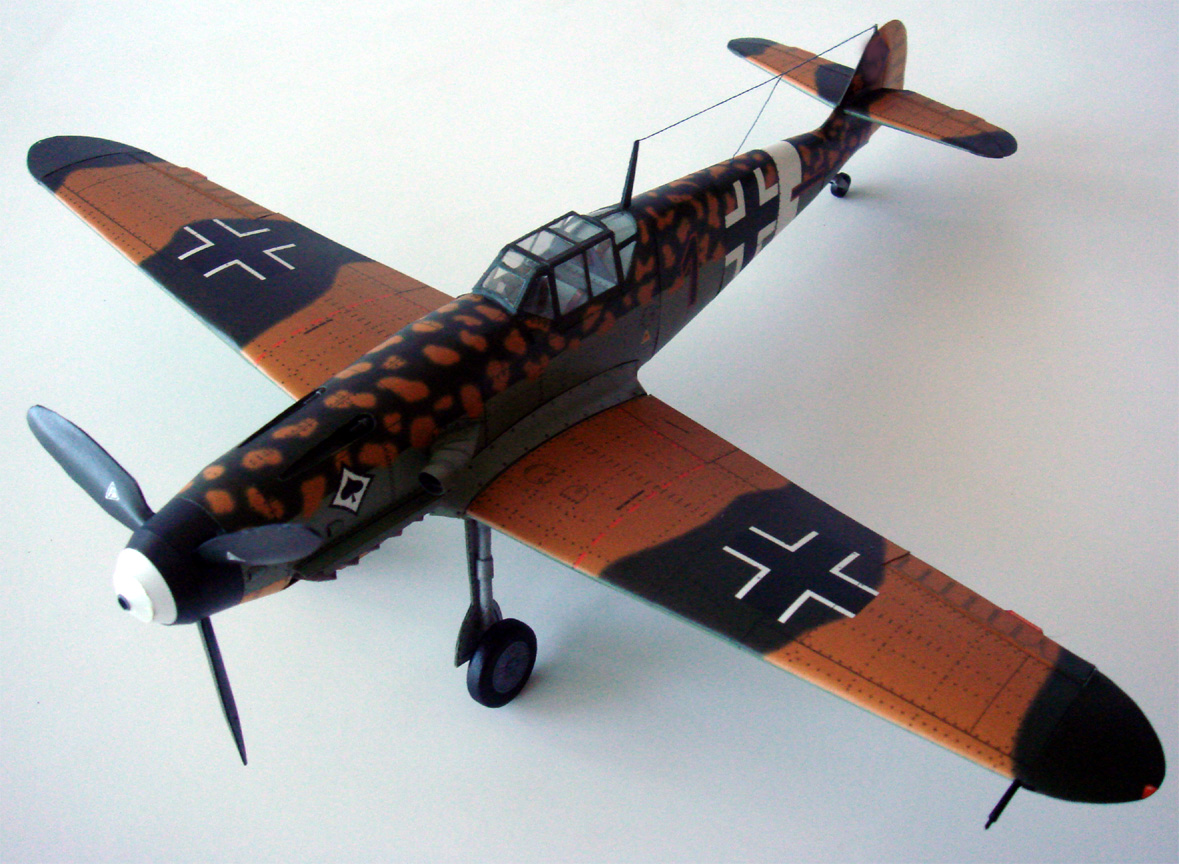

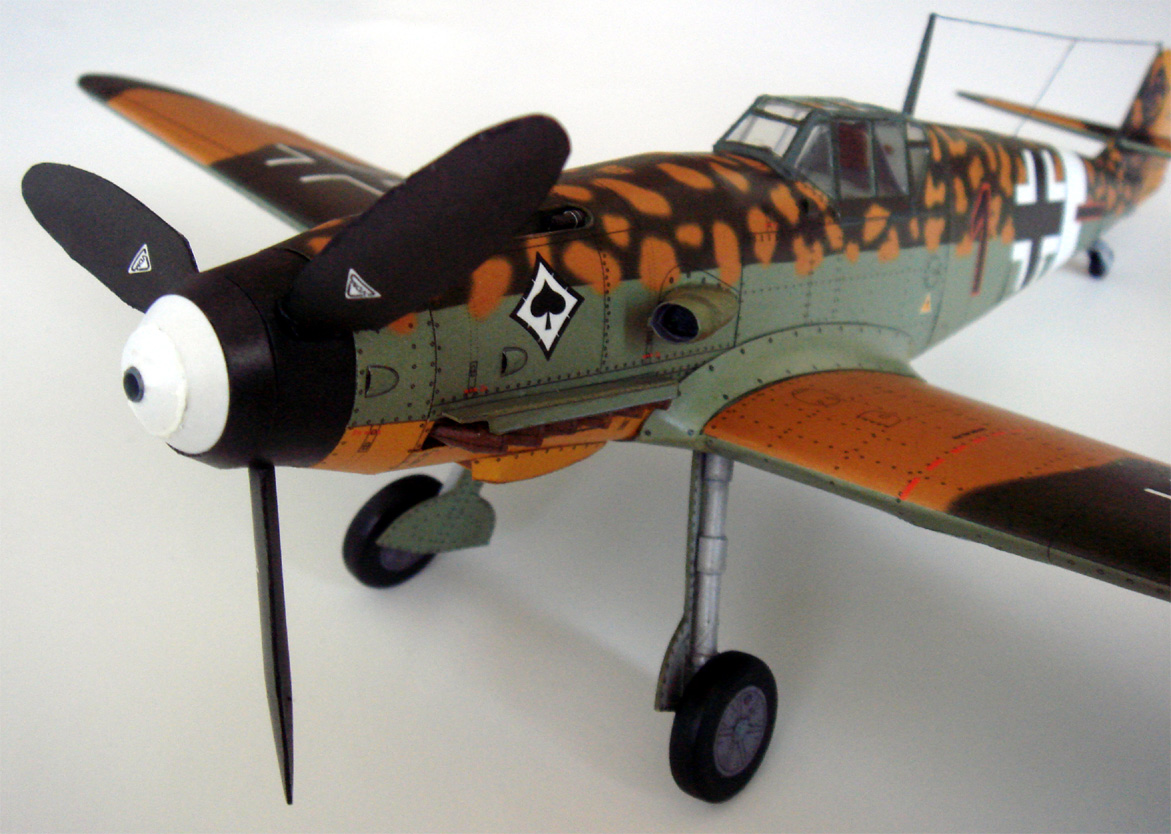

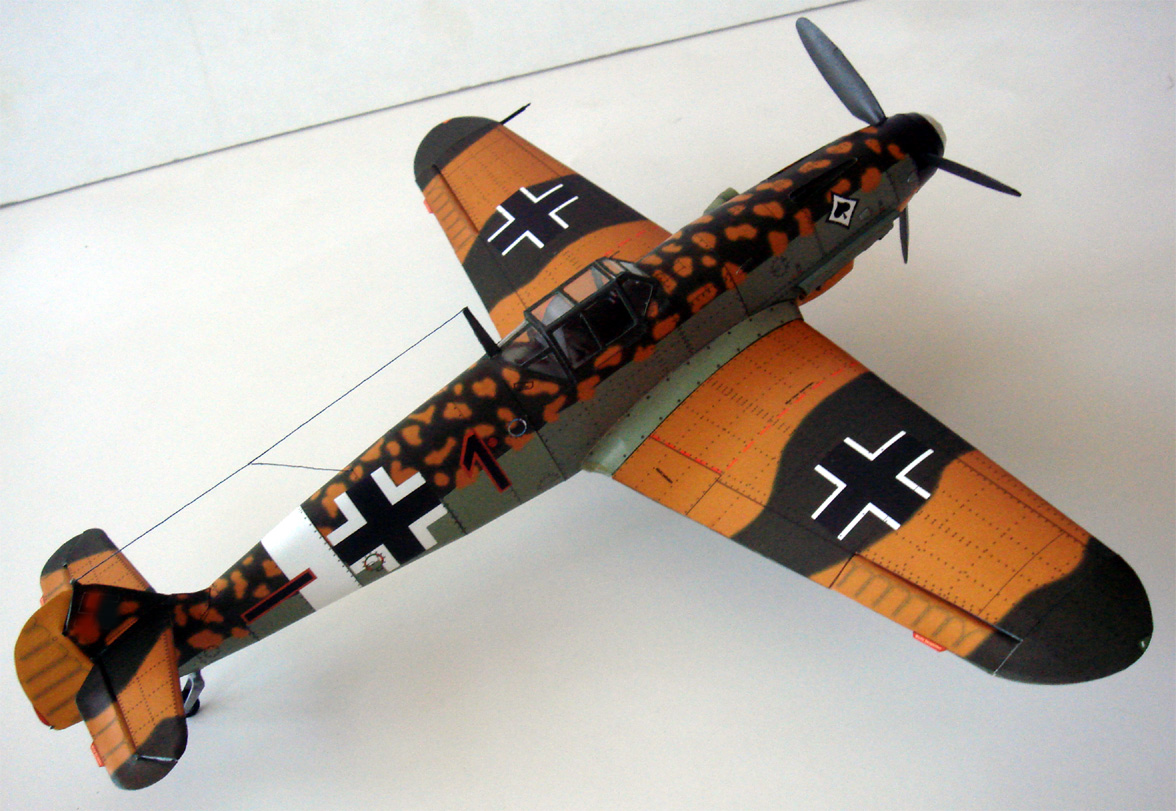

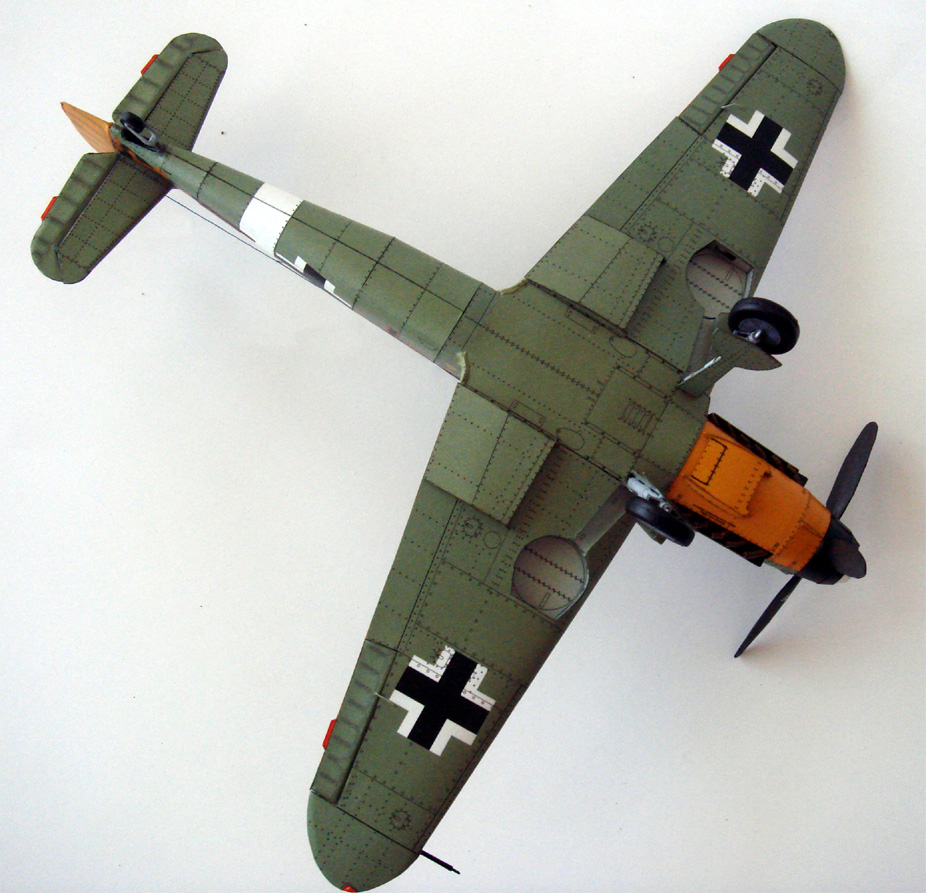

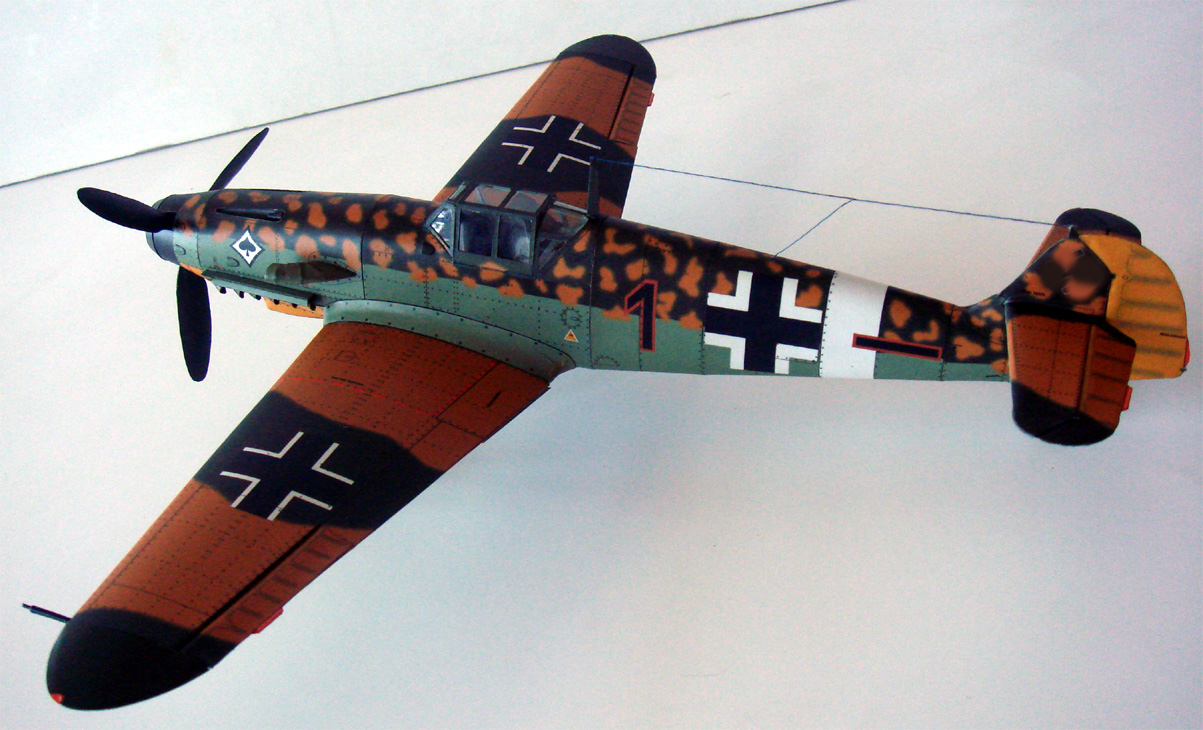

Here are some pictures of a finished model made by Jörg Schulze from Germany

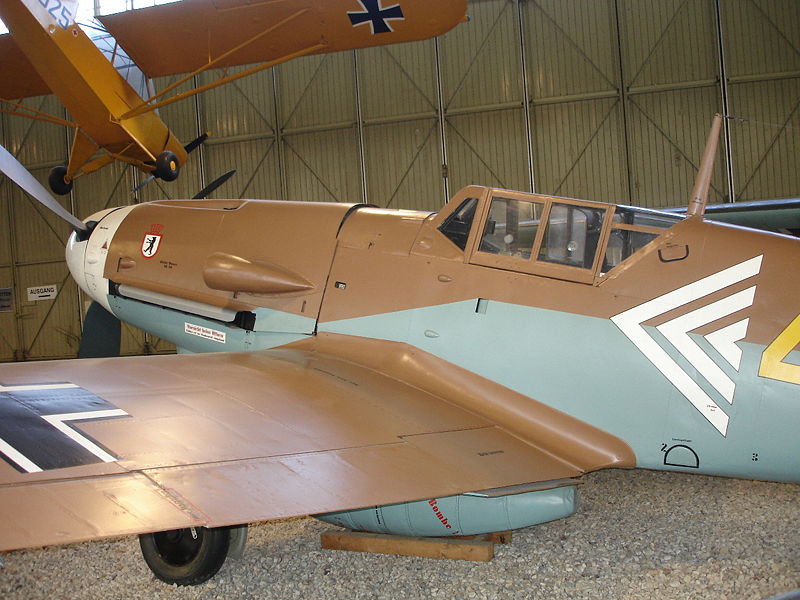

History and information

The Messerschmitt Bf 109 was a German World War II fighter aircraft designed by Willy Messerschmitt in the early 1930s. It was one of the first true modern fighters of the era, including such features as an all-metal monocoque construction, a closed canopy, and retractable landing gear. The Bf 109 was produced in greater quantities than any other fighter aircraft in history, with a wartime production (September 1939 to May 1945) of 30,573 units. Fighter production totalled 47% of all German aircraft production, and the Bf 109 accounted for 57% of all fighter types produced.[1] 2,193 Bf 109 A-E were built prewar, from 1936 to August 1939, with additional ~1,000 postwar as licence built Avia S-99/S-199 and Ha 1112 Buchon The Bf 109 was the backbone of the Luftwaffe fighter force in World War II, although it began to be partially replaced by the Focke-Wulf Fw 190 from 1941. The Bf 109 scored more aircraft kills in World War II than any other aircraft. At various times it served as an air superiority fighter, a bomber escort, an interceptor, a ground-attack aircraft and a reconnaissance aircraft. Although the Bf 109 had weaknesses, including a short range, and especially a sometimes difficult to handle narrow, outward-retracting undercarriage, it stayed competitive with Allied fighter aircraft until the end of the war. The Bf 109 was flown by the three top-scoring fighter aces of World War II: Erich Hartmann, the top scoring fighter ace of all time with 352 official victories, Gerhard Barkhorn with 301 victories, and Günther Rall with 275 victories. All of them flew with Jagdgeschwader 52, a unit which exclusively flew the Bf 109 and was credited with over 10,000 victories, chiefly on the Eastern Front. Hartmann refused to fly any other aircraft in combat throughout the war. Hans-Joachim Marseille, the highest scoring German ace in the North African Campaign, also scored all of his 158 official victories in the Bf 109, against Western Allied pilots. The Bf 109 was also used with good result by non-German pilots, including Finnish fighter ace Ilmari Juutilainen with 94 victories — the highest scoring non-German fighter ace in history. The Bf 109 will always be compared to its adversary, the Supermarine Spitfire; both were among the best of their day.

The G-2 was the first of the G-series in production in early 1942 to be accomplished by the G-1 with pressurized cockpit just some weeks later. In autum 1942 production was changed to G-4 and the pressurized version G-3 (only 50 produced). As the weight increased again many late-production G-2 and all G-3/G-4 had larger cross section main and tail wheel tires, requiring the first small bulges on the wing. The larger tail wheel was only partially retractable causing more drag and a loss in speed of about 6 km/h occurred. In summer 1943 the G-6 was introduced with even more bulges to cover the 13 mm MG 131 cowling machine guns' breeches, replacing the smaller 7.92 mm MG 17. These bulges reduced speed by further 12 km/h. The G-5 was a G-6 with pressurized cockpit, the G-5/AS was the first to be equipped with a DB 605AS engine for high altitude missions (sometimes even with GM-1 injection).

Known variants of the g2

* G-2/R1 (Fighter-bomber- 2 underwing drop tanks, extended second tail wheel for large bombs)

* G-2/R2 (Reconnaissance equipment or bomb rack)

* G-2 Trop (Tropicalized fighter)


Specifications

Empty Weight 1700 kg
Max takeoff Weight 3150 kg
Length 9.05meters
Wingspan 9.92 meters
Crew 1
Primary armament

1 x 20mm gun MG-151/20

2 x 7.92mm MG-17 machine-guns

Engine Daimler-Benz DB-605 A-1 1474 hp., 12 cyl.
Operational range 725 km
Speed 623 km/h

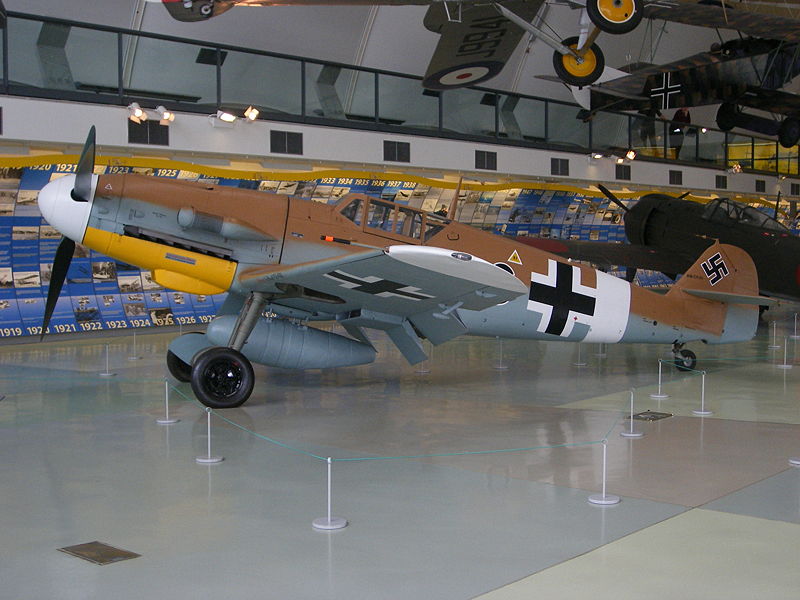

Pictures and info from Wikipedia
