T40 1:25 Orlik

Construction pics




The work continues


Adding rivets in the front

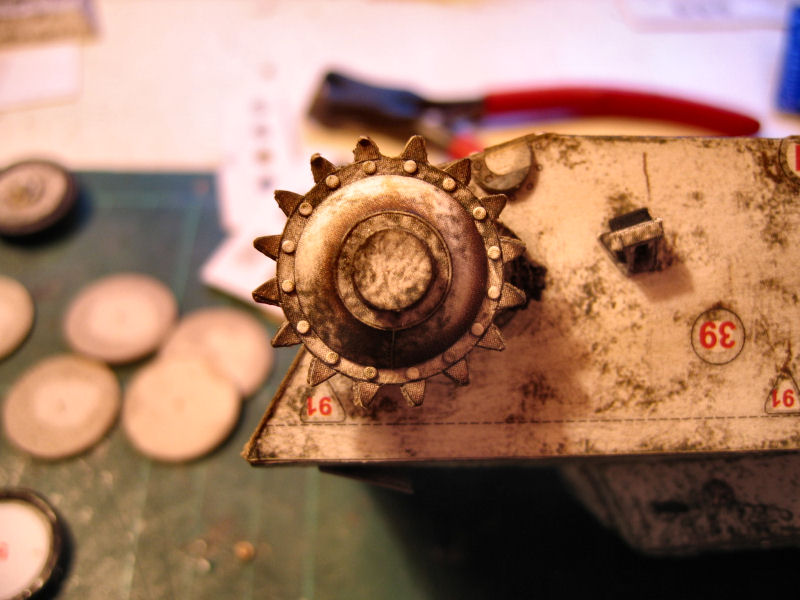

Rivets added to the drivewheel

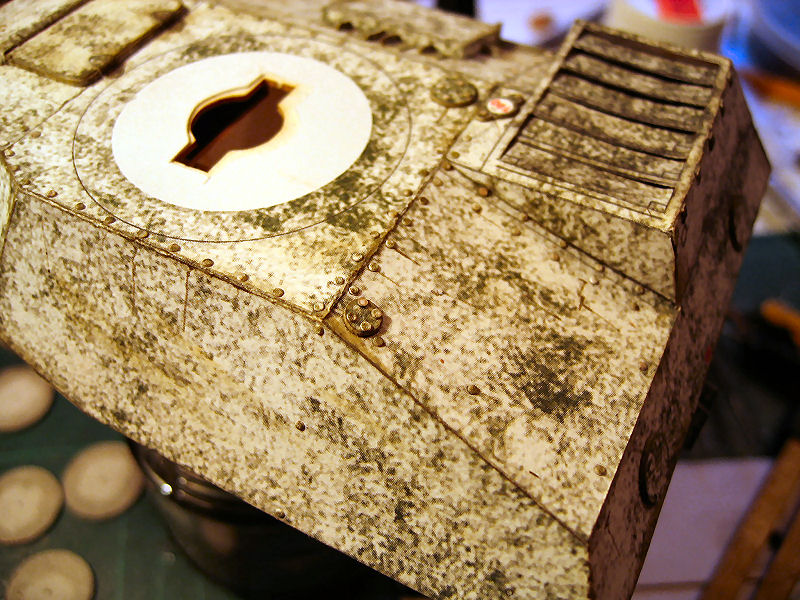

Adding rivets to the rear part

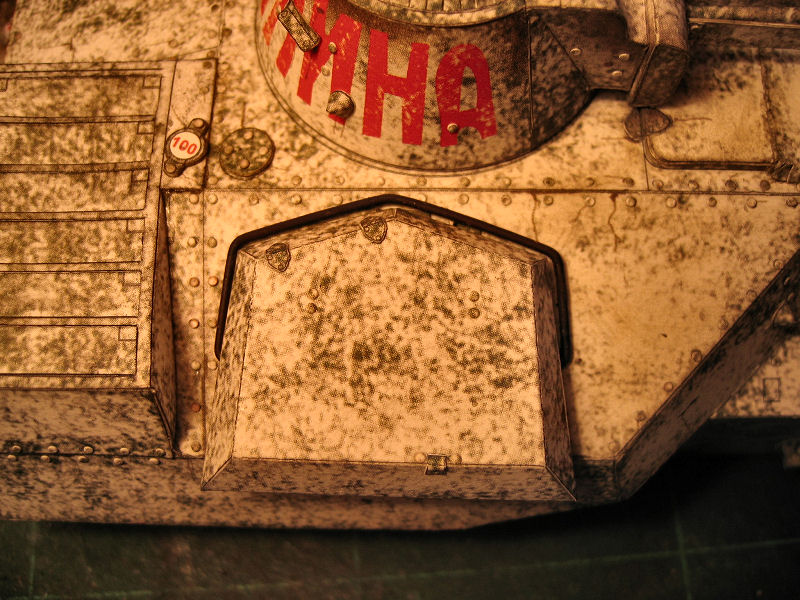

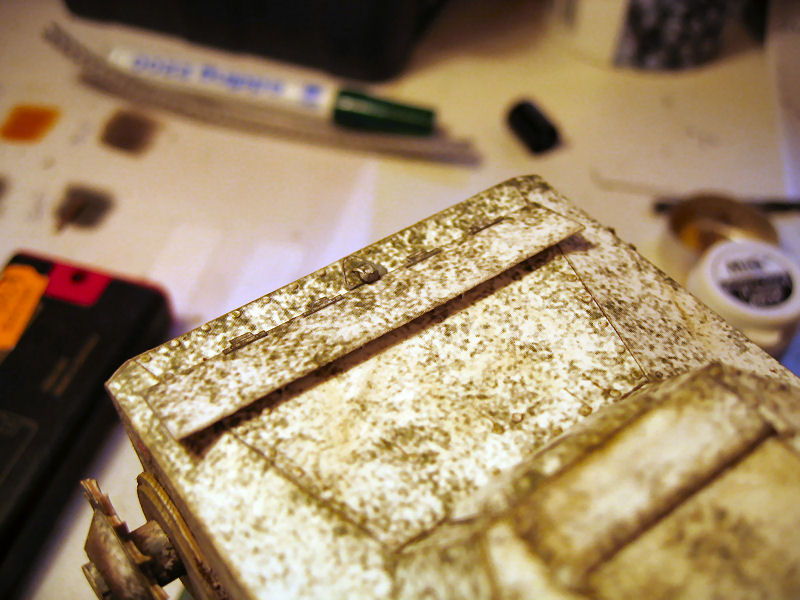

Mounted the front plate...

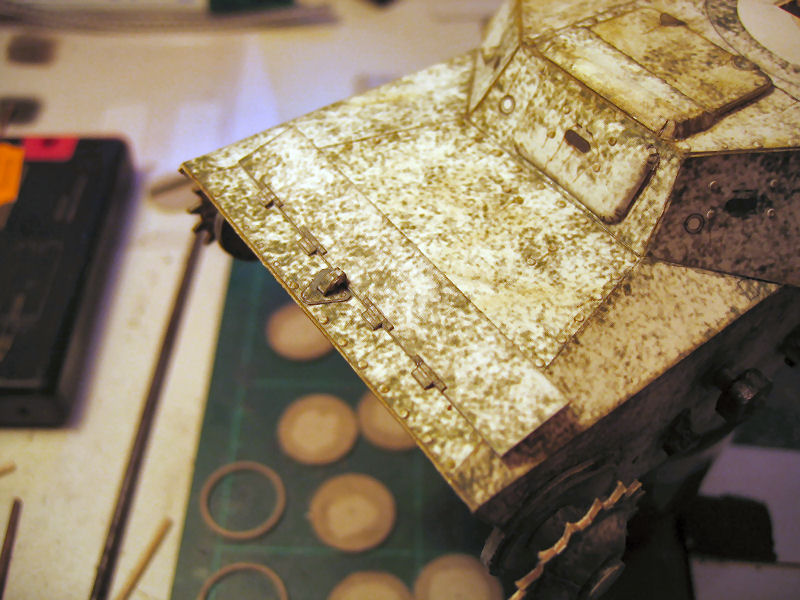

Another view of the plate

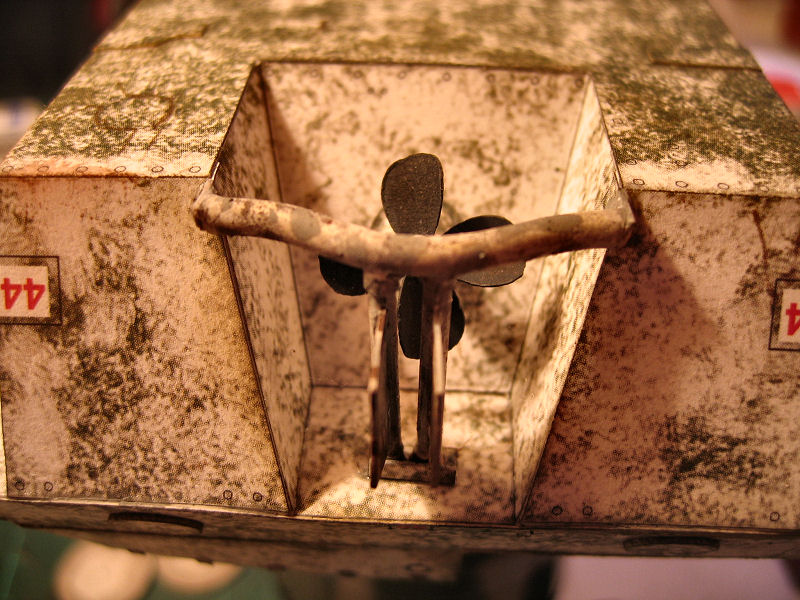

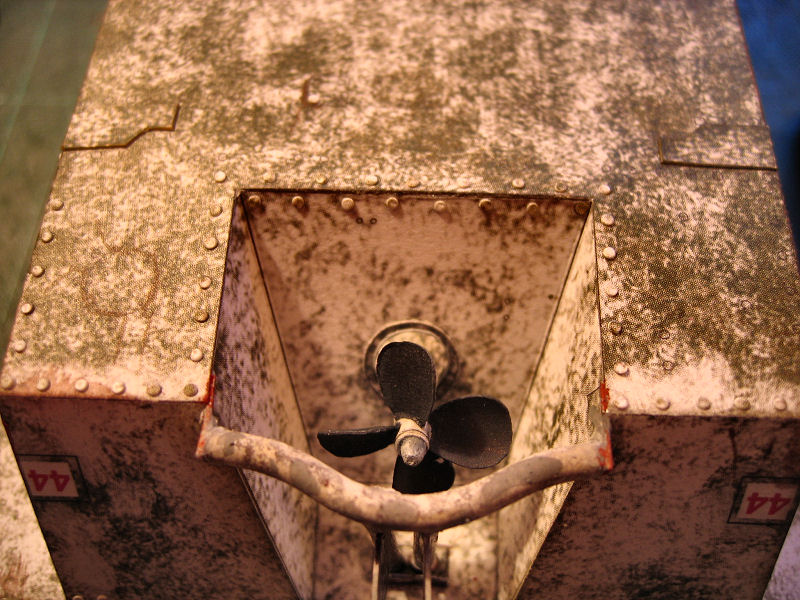

The propeller and rudders
Rivets....
More rivets..

Even more rivets..
I will guess that I'll be placing around 1000 rivets all in all...The build itselves is quite easy.

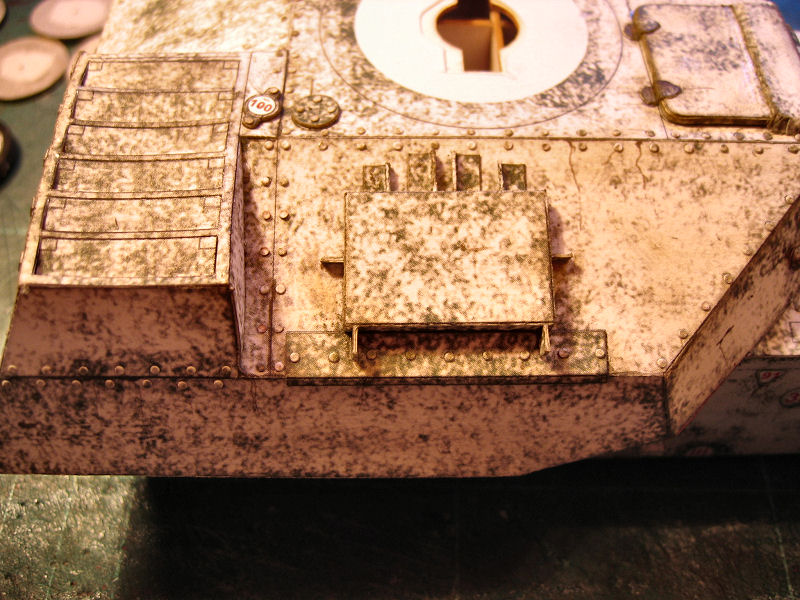

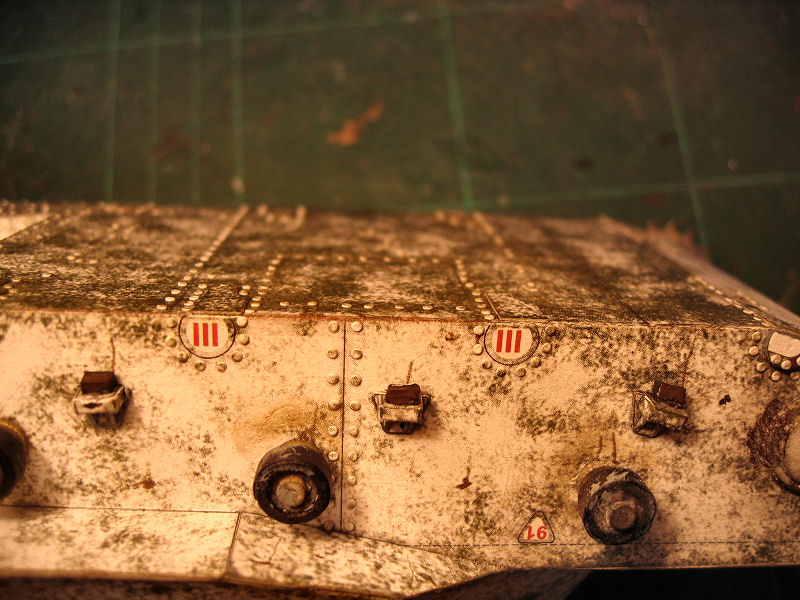

Some construction on the side of the tank

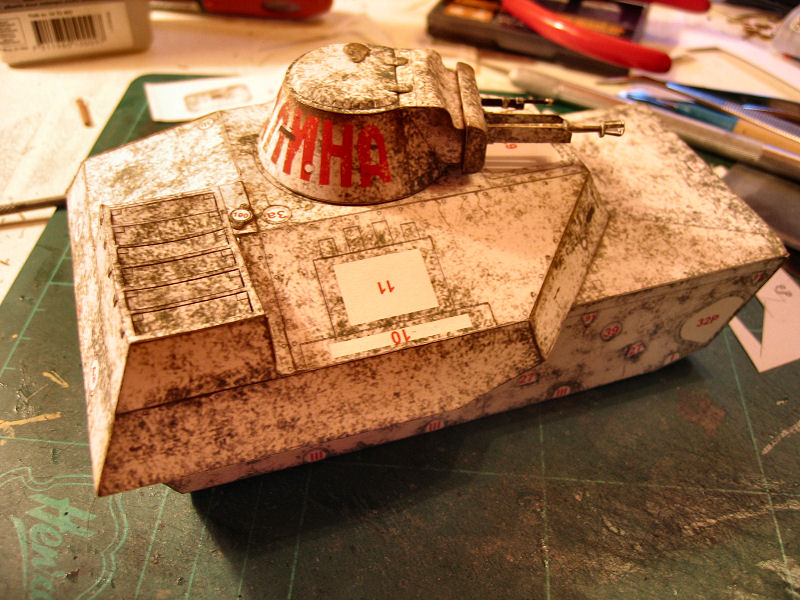

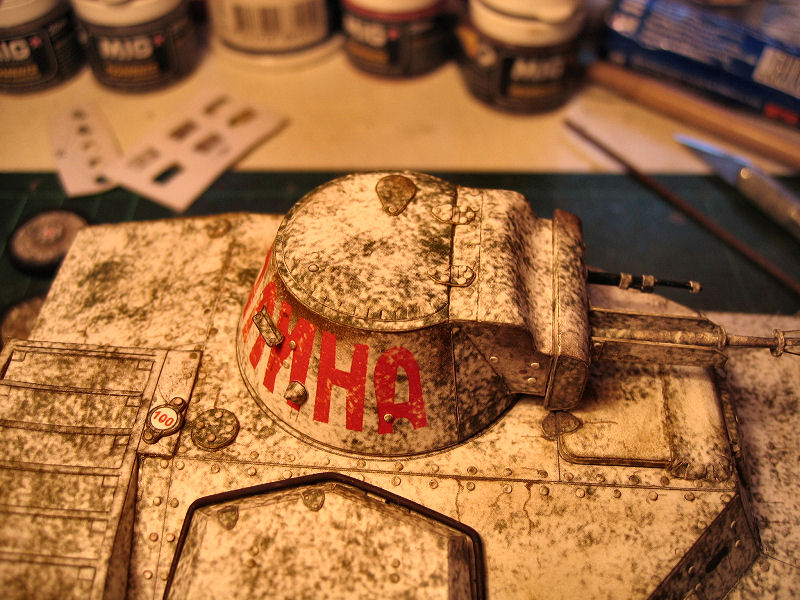

Rivets added to the turret

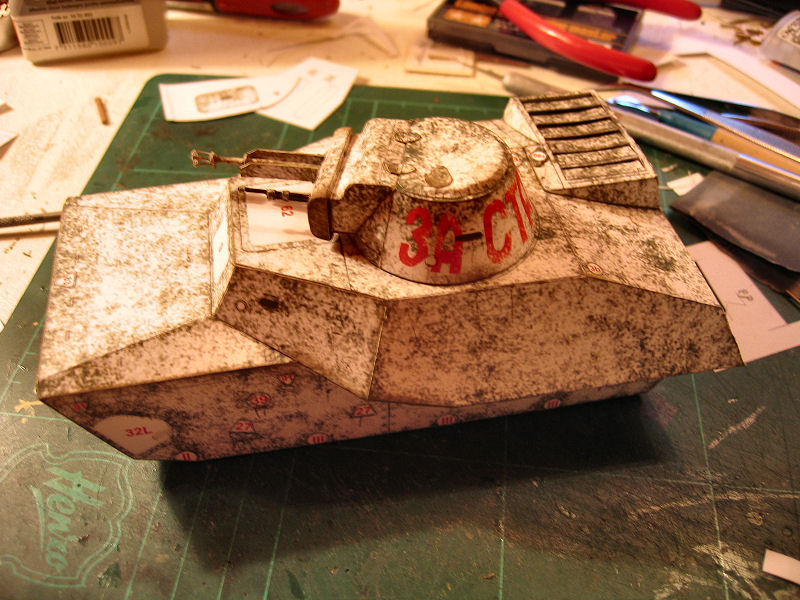

Other side

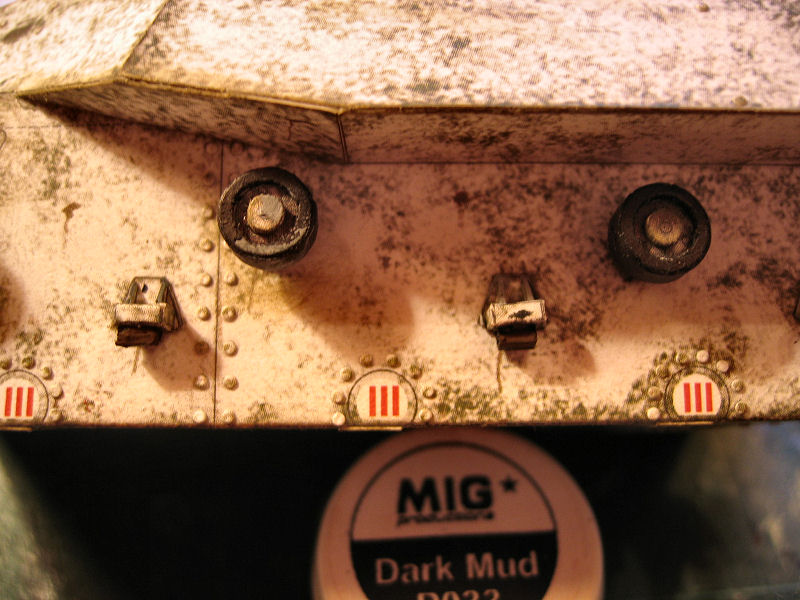

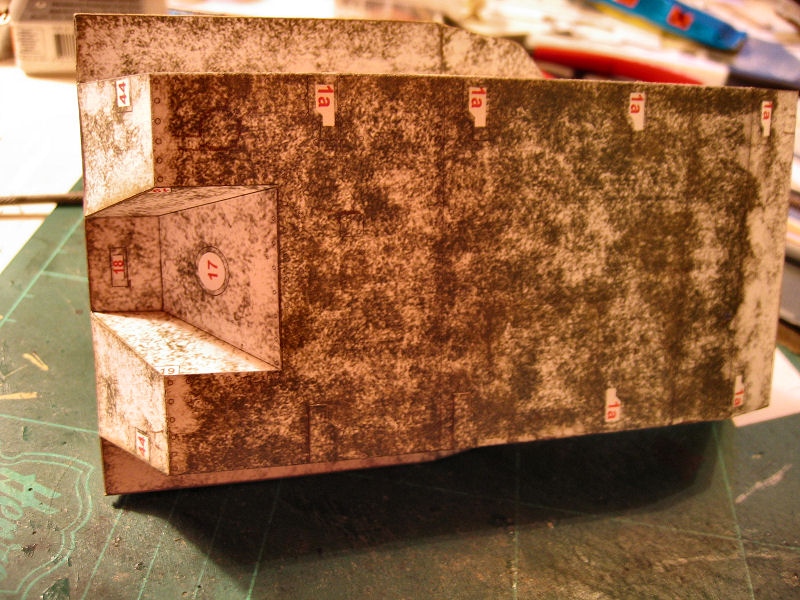

Rivets on the underside

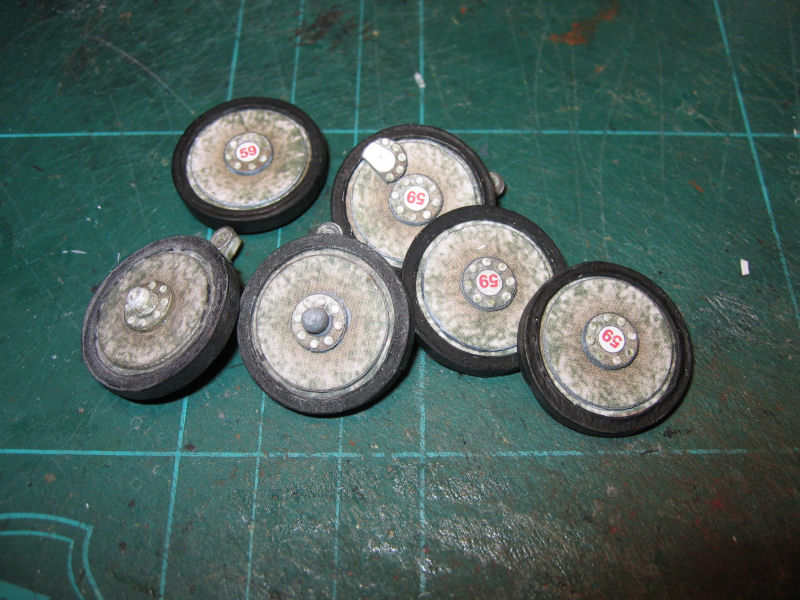

The roadwheels

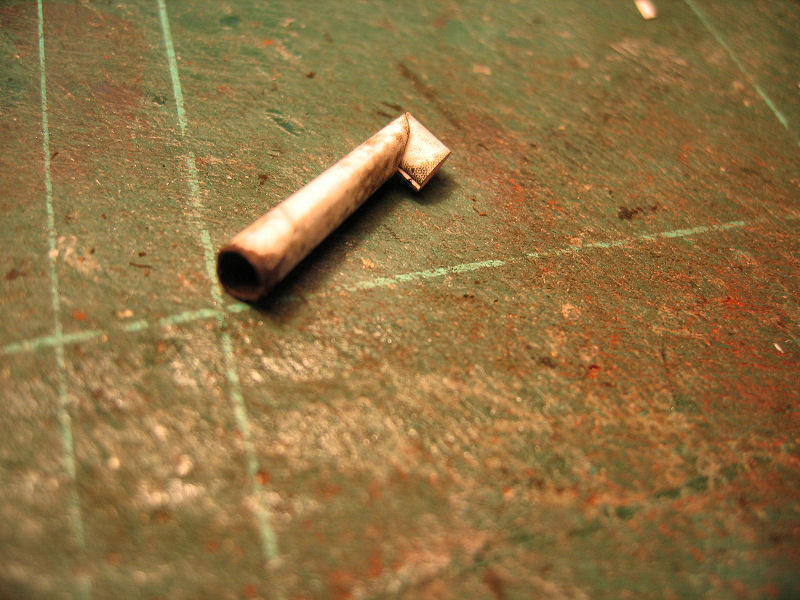

Exhaust pipe

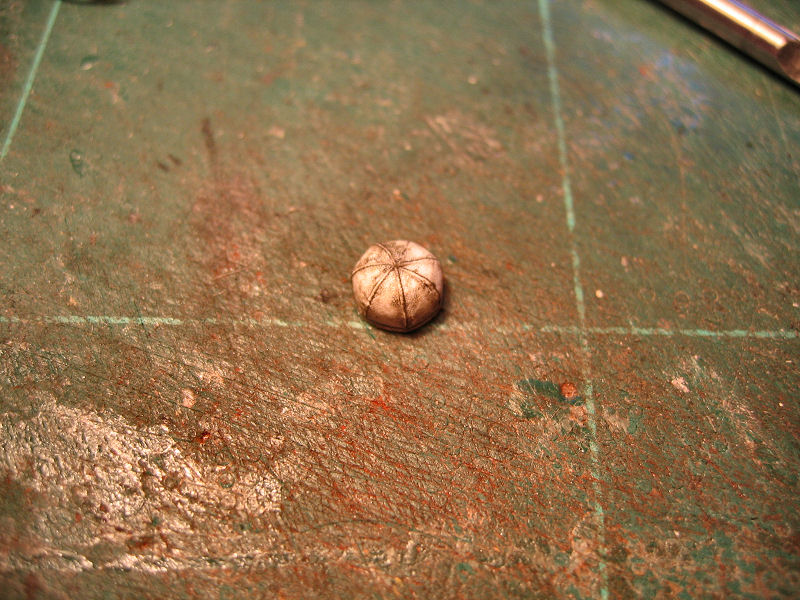

The headlight

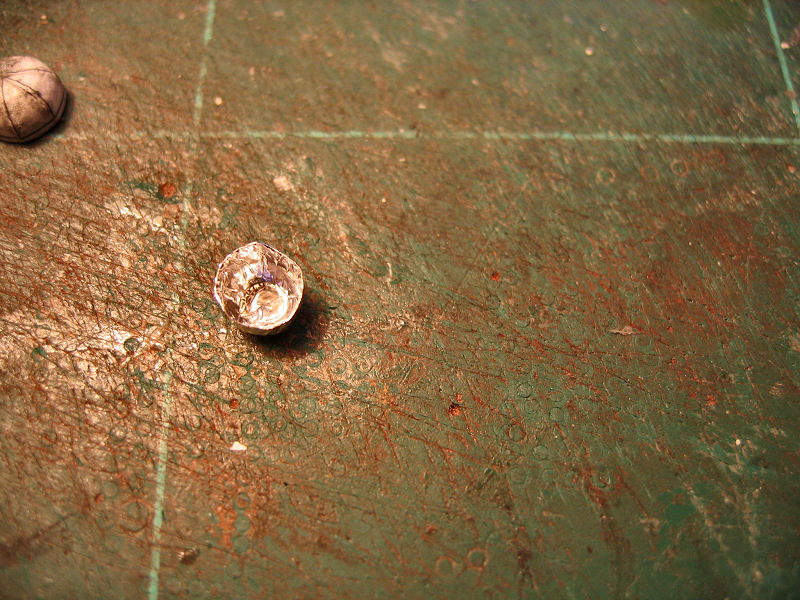

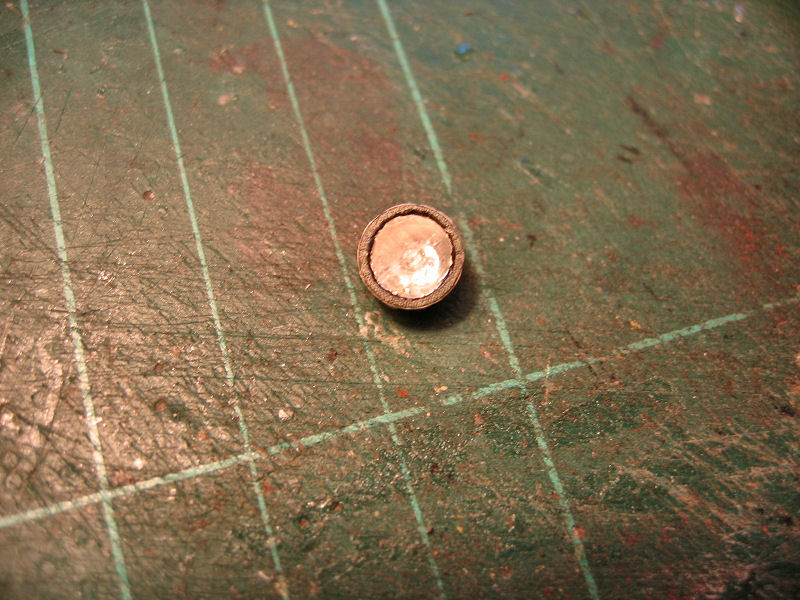

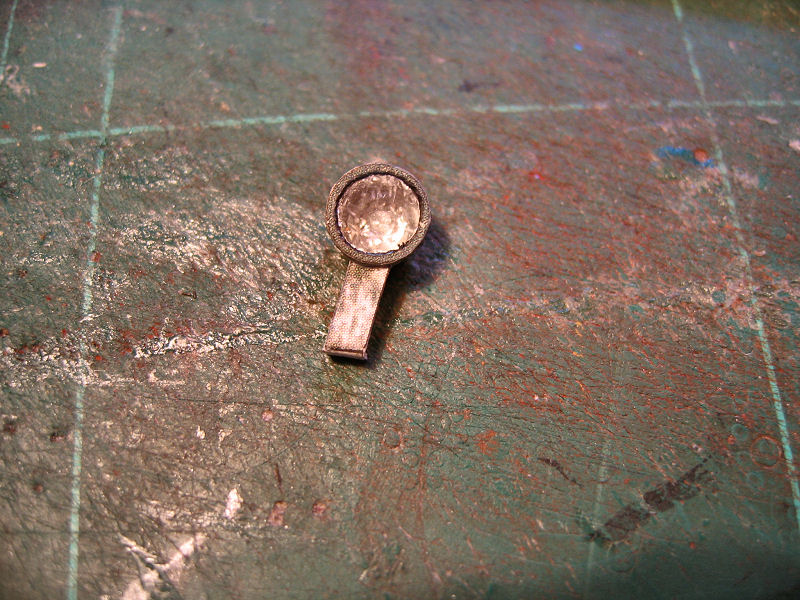

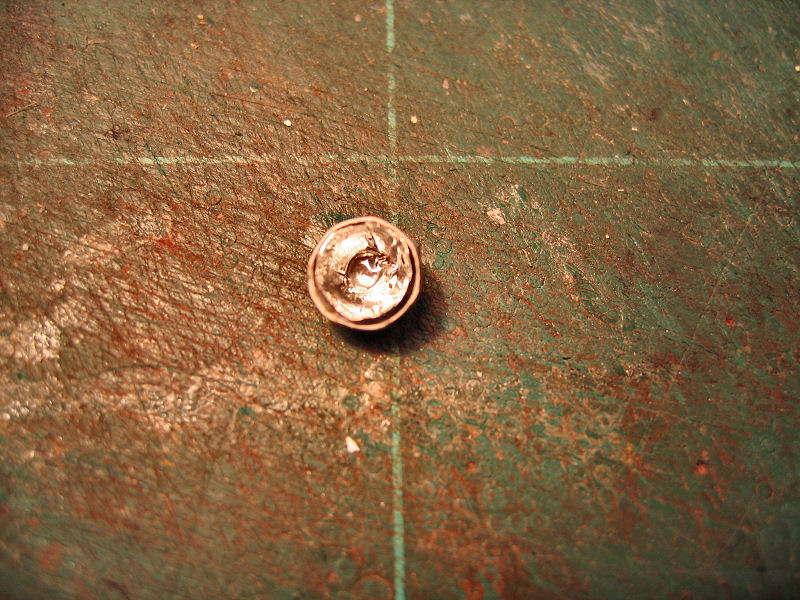

The reflector.
Reflector inserted into the headlight

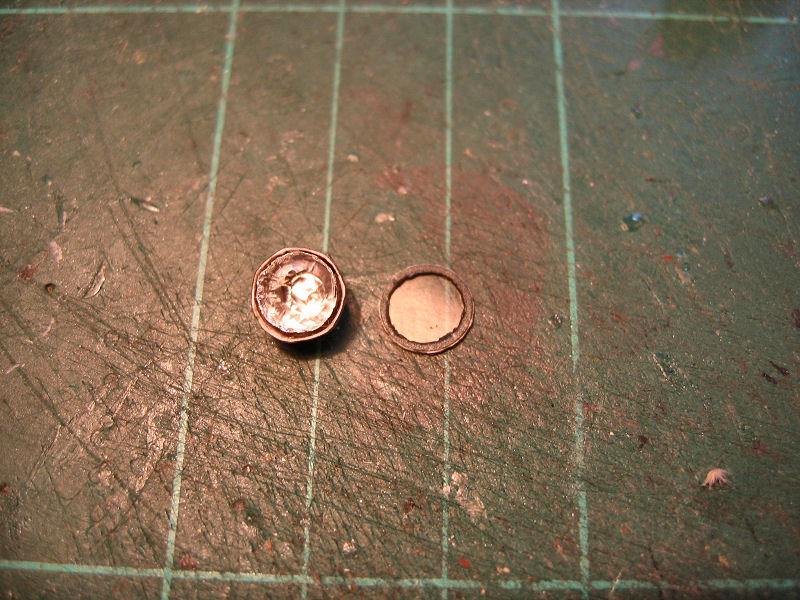

Front glass

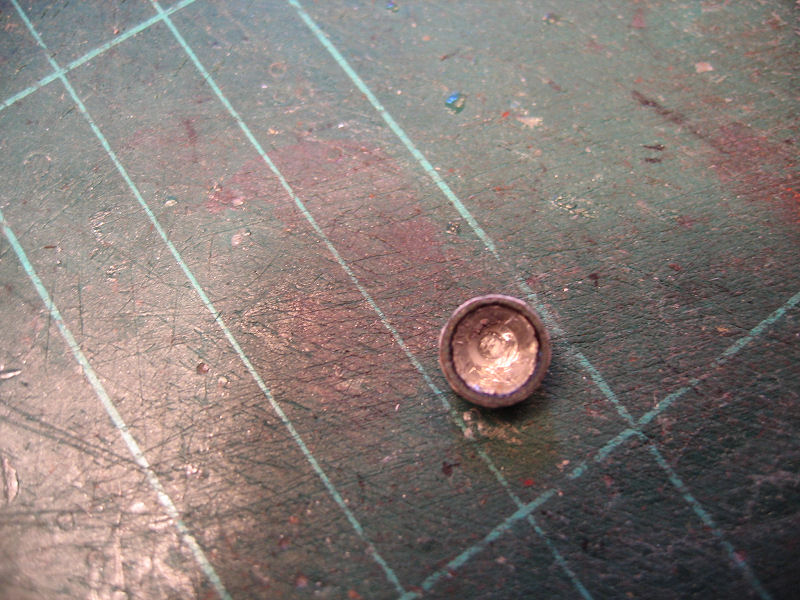

The headlight completed
Another view
The finished headlight.

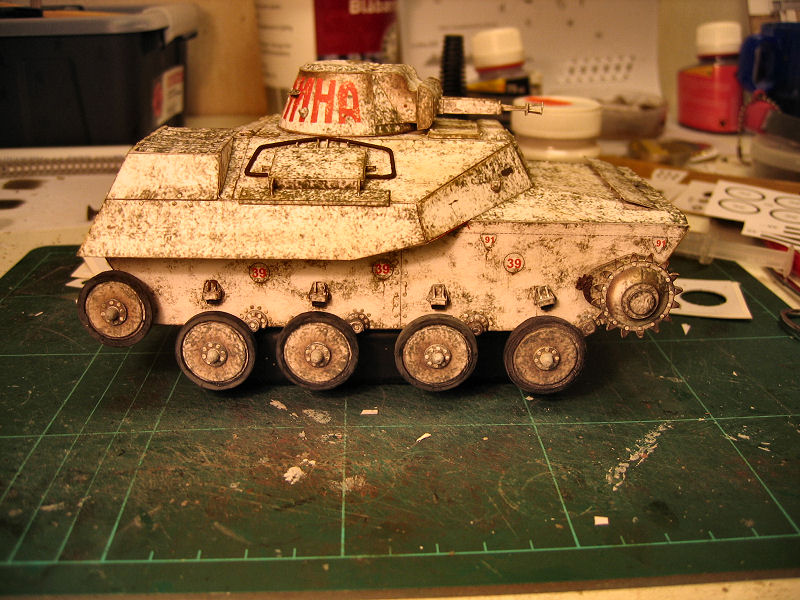

The first set of roadwheels in place

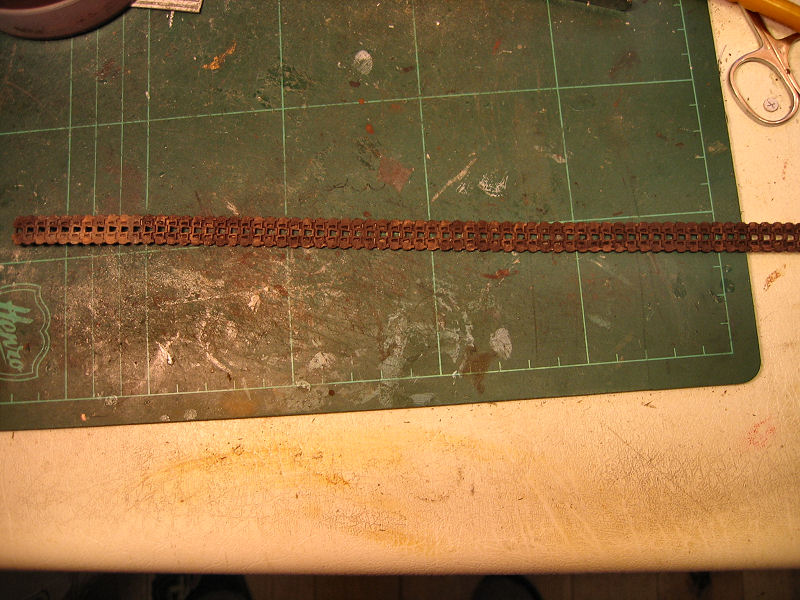

Starting to put the first layer of color on the tracks

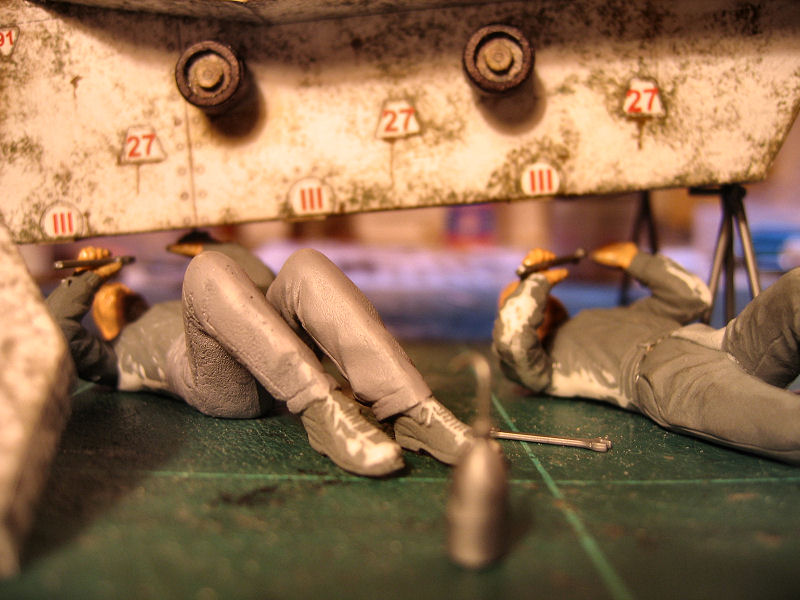

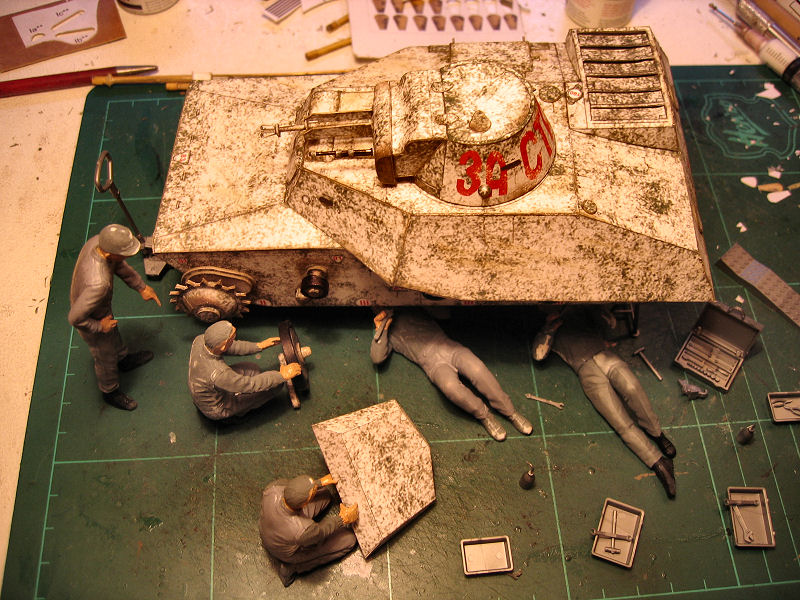

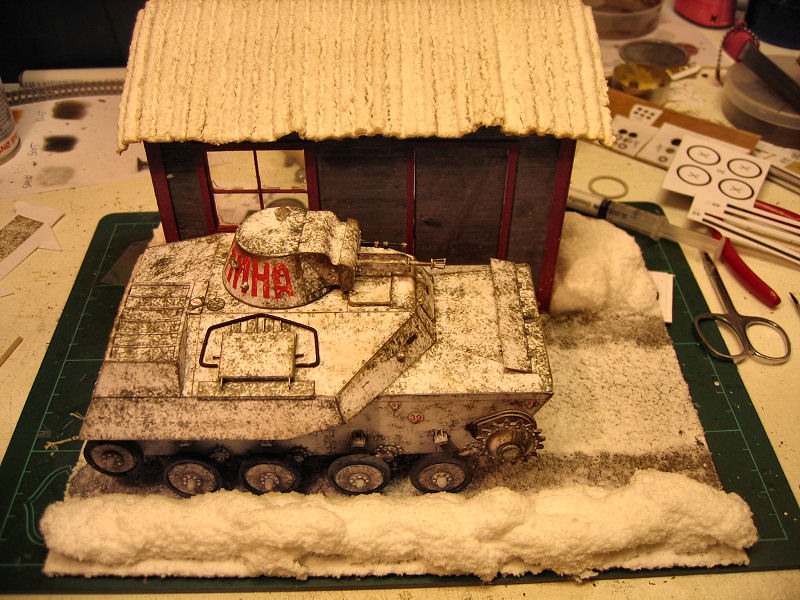

Placed in the small diorama I have planned for it.

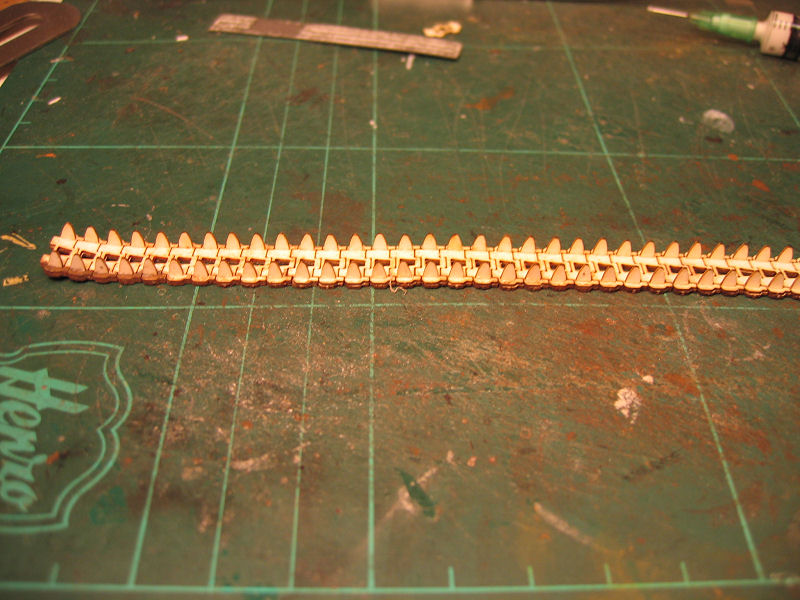

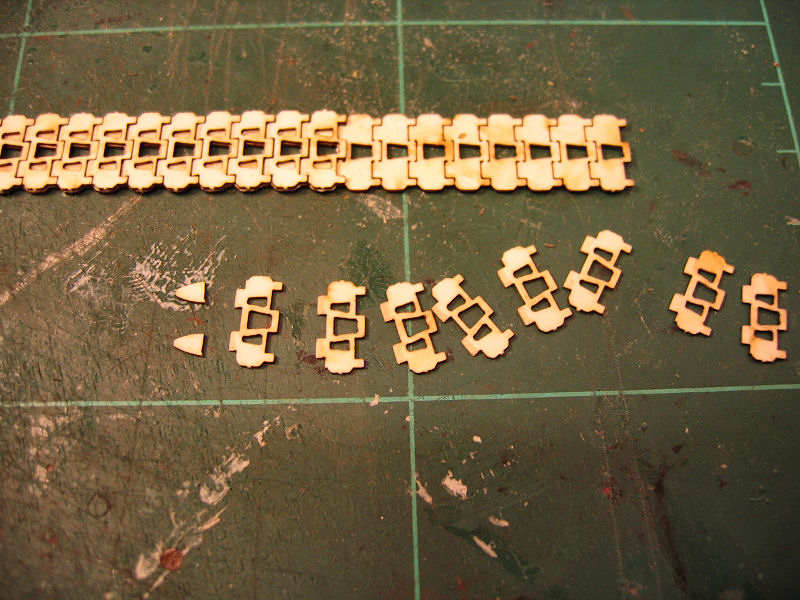

Parts for making tracks

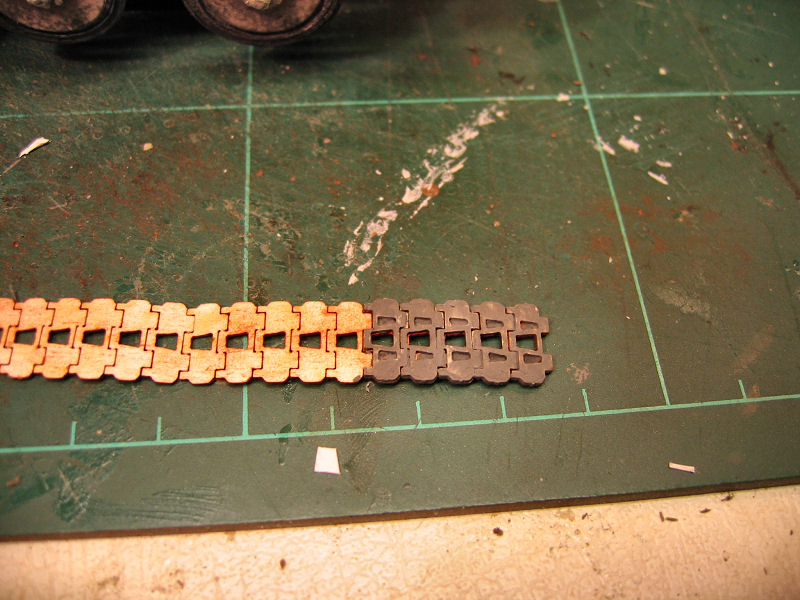

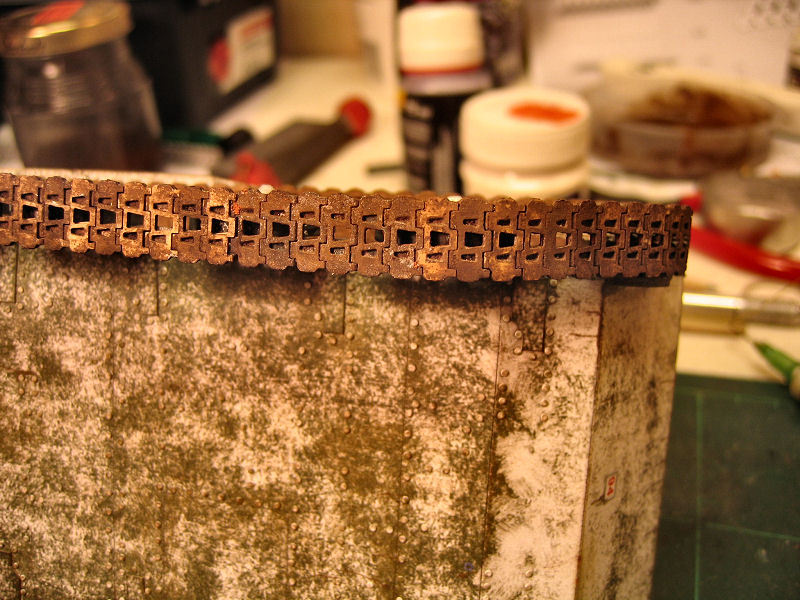

Outside of the track is painted
The inside

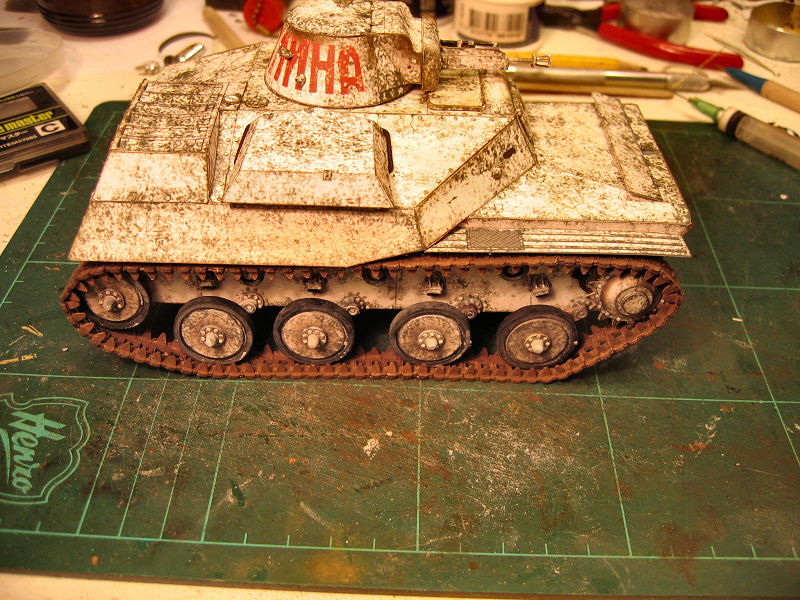

Mounted on the tank

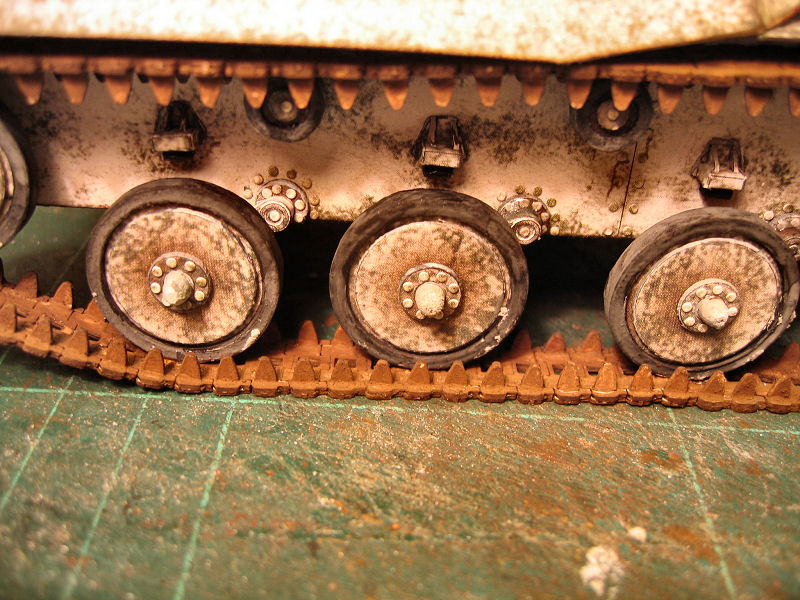

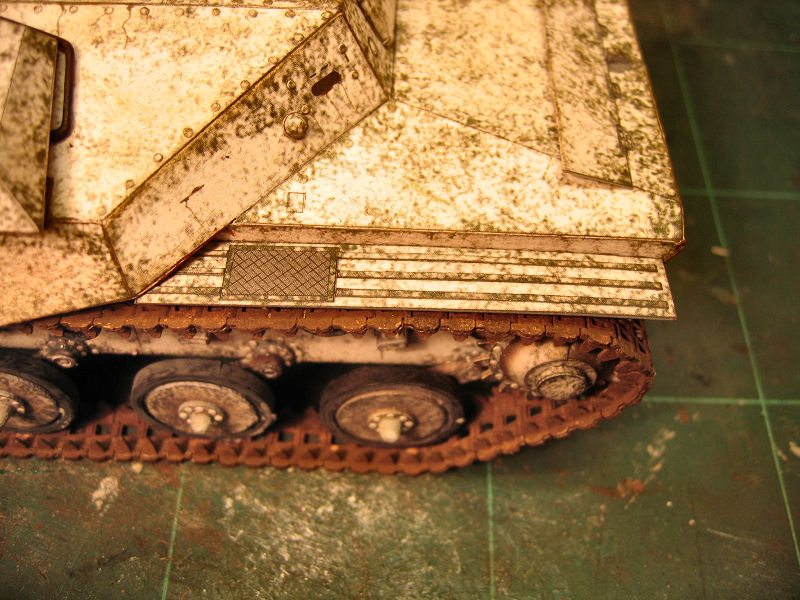

A closeup of the roadwheels.
The underside

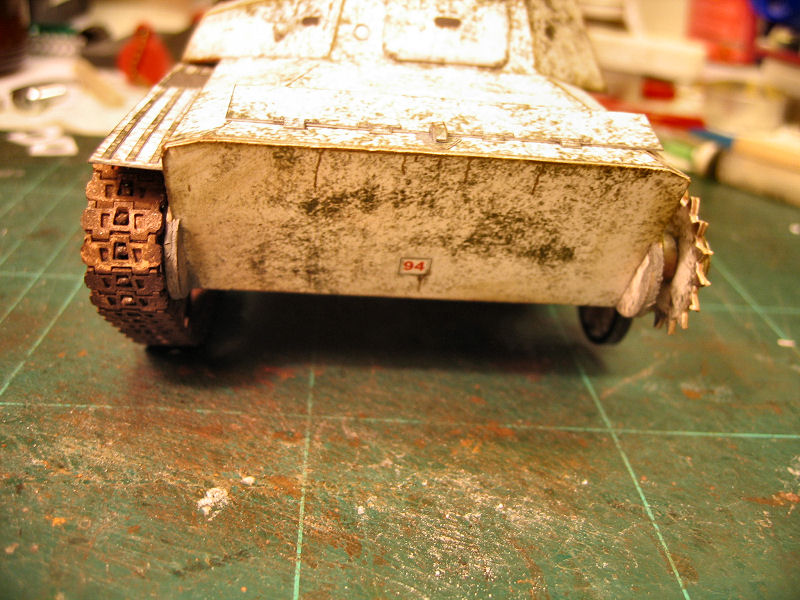

Front view

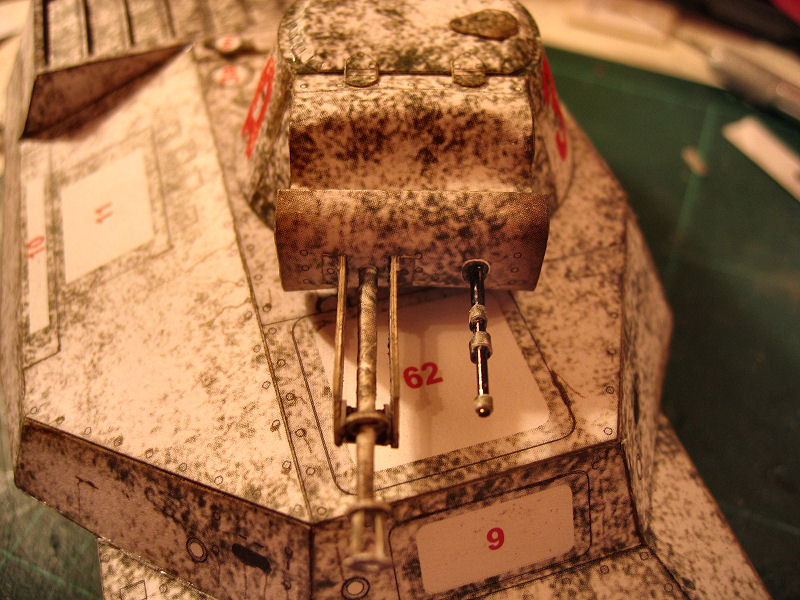

Closeup of the front end.

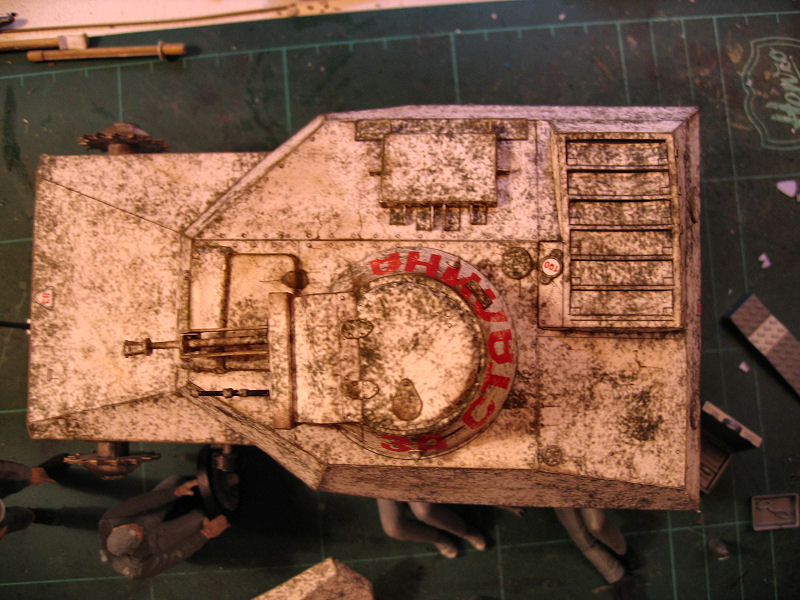

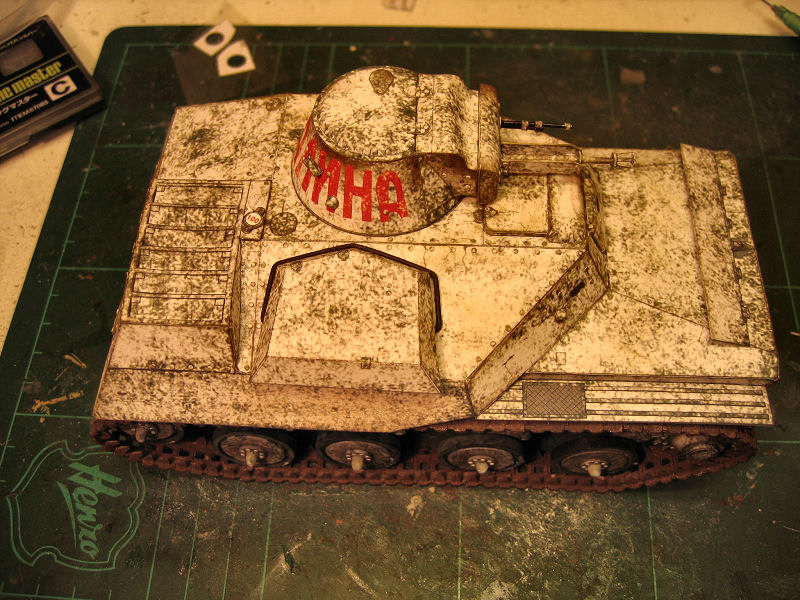

Overview.
